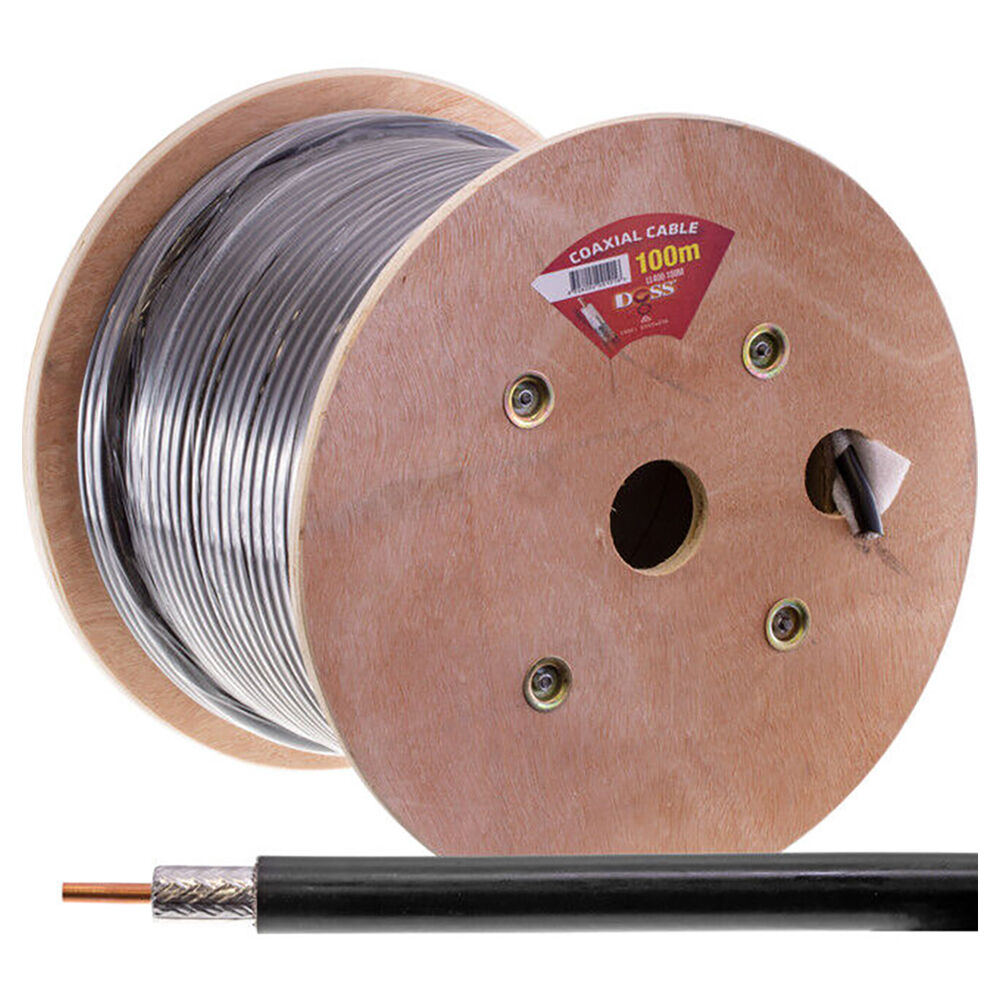

Doss LL400 50OHM Coaxial Cable Cord Low Loss Heavy Duty Roll Black 100M

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Doss LL400 50OHM Coaxial Cable Cord Low Loss Heavy Duty Roll Black 100M

This item is sold as a 100m roll

Need a shorter length?

This cable is also available per metre.

LL400 - 50 OHM COAXIAL CABLE

A heavy-duty 50Ω coaxial cable, suitable for low-loss applications such as mobile phone booster systems.

Mechanical Characteristics

  • Impedance: 50 ± 2 Ω
  • Velocity: 85%
  • Minimum bend radius: 51.5mm
  • Capacitance: 78.9pF/m
  • Jacket spark: 8000 VRMS



Construction

  Material Dimensions
Inner conductor Copper-clad aluminium 2.74 ± 0.02mm
Dielectric Foam PE 7.24 ± 0.13mm
Outer conductor Bonded dual-aluminium foil + tinned copper 86% coverage, 24*7*0.16
Jacket Black PE 10.29 ± 0.18mm



Attenuation Characteristics

Frequency (MHz) Typical (dB/30m) Max (dB/30m)
30 0.76 0.84
50 0.97 1.07
150 1.5 1.7
220 1.9 2.1
450 2.7 3.0
900 3.9 4.3
1500 5.1 5.6
1800 5.6 6.2
2000 5.9 6.5
2500 6.7 7.4
3000 7.5 8.3

Includes:
1 x Cable Roll Reel

(RP-05054056)

12 Months

Model # RP-05054056
Barcode # 9328202001016
Brand DOSS
Shipping Weight 11.1500kg
Shipping Width 0.180m
Shipping Height 0.100m
Shipping Length 0.150m
Shipping Cubic 0.002700000m3
Type Coaxial Raw
