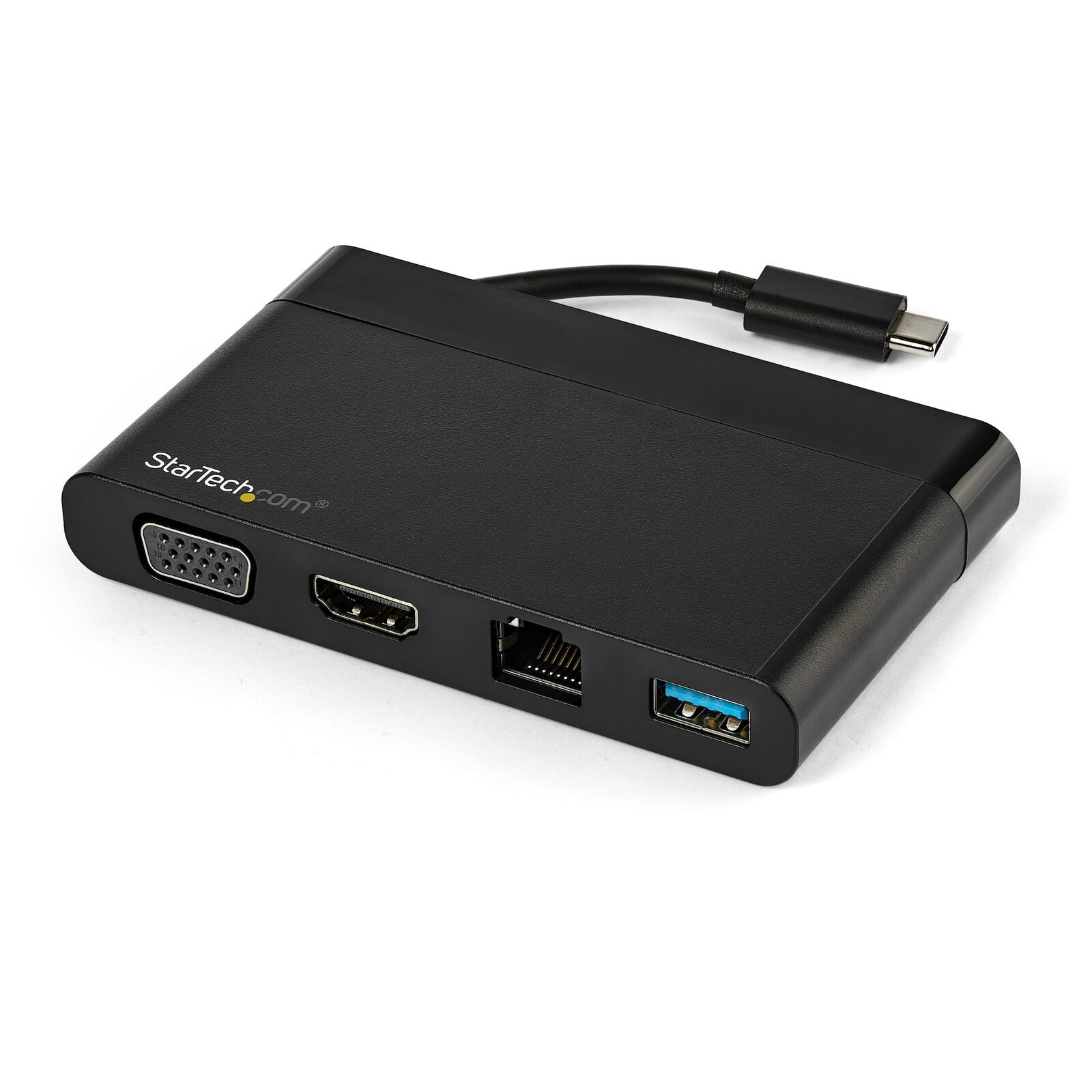

USB C Multiport Adapter with HDMI and VGA

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

USB C Multiport Adapter with HDMI and VGA

Ideal for mobile workers, this USB-C multiport adapter with HDMI and VGA gives you flexible video output. It’s like four adapters in one, with HDMI or VGA connections, a Gigabit Ethernet port and a USB 3.0 port, all through one connection to your laptop’s USB-C port. Plus, it features a hideaway cable for better cable management and easier travel.

With easy plug-and-play installation on most operating systems, the USB-C adapter doesn’t require additional drivers or software. It’s the perfect accessory for MacBook Pro, Dell XPS, Chromebook or other USB-C laptops.

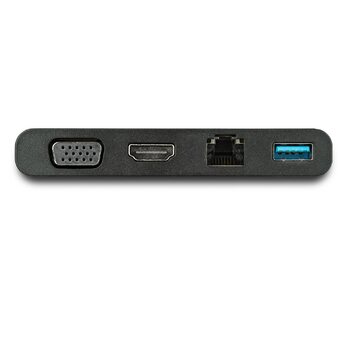

Connect a UHD 4K HDMI or VGA Monitor

The USB Type-C multiport adapter keeps you prepared for business travel. You can extend your laptop’s display by connecting to a 4K HDMI (4096x2160 or 3840 x 2160p) or VGA (1920 x 1200p) monitor or projector, to make presentations or set up a workstation.

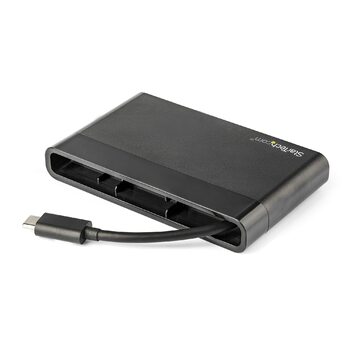

Convenient Cable Management

With multiple ports and an easily accessible hideaway cable, the USB-C all-in-one adapter makes an ideal travel dock, for easy connections on the go. Plus, the USB Type-C adapter is bus powered, so there’s no need to carry around a separate power adapter.

Enhance Productivity 

Connect a flash drive, mouse or other peripheral to your USB-C or Thunderbolt 3 laptop using the USB 3.0 Type-A port. The USB-C adapter adds wired network connectivity with the GbE port, making it ideal in areas without Wi-Fi.  

(DKT30CHVCM)

This item comes with a 36 months warranty

Plus, it featuresa hideawaycable forbetter cable management andeasier travel.

Packaging Information
Package Length: 17.5 cm [6.9 in]
Package Width: 14.2 cm [5.6 in]
Shipping (Package) Weight: 0.2 kg [0.4 lb]

Performance
Auto MDIX: Yes
Compatible Networks: 10/100/1000 Mbps
Full Duplex Support: Yes
Maximum Analog Resolutions: 1920 x 1200p @ 60Hz (VGA)
Maximum Data Transfer Rate: 5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions: 4096 x 2160p @ 24Hz or 3840 x 2160p @ 30Hz (HDMI)
Type and Rate: USB 3.0 - 5 Gbit/s
UASP Support: Yes

Physical Characteristics
Cable Length: 75 mm [3 in]
Color: Black
Material: Plastic
Product Height: 1.6 cm [0.6 in]
Product Length: 10.5 cm [4.1 in]
Product Width: 62 mm [2.4 in]
Weight of Product: 82 g [2.9 oz]

Power
Power Source: USB-Powered

Prominence
Description CDW 75 - 1st Line: StarTech.com USB C Multiport Adapter - 4K HDMI / VGA - USB-C Travel Dock

Software
OS Compatibility: Windows® 7, 8, 8.1, 10
macOS 10.11 to 10.15, 11.0
Chrome OS™

Special Notes / Requirements
Note: A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K). : Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your laptop USB-C port supports DP alt mode. : Only one video output port can be used at the same time (HDMI or VGA). If two displays are connected, the HDMI port takes priority. : USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
System and Cable Requirements: Host laptop with an available USB-C port (to ensure full functionality, the laptop's USB-C port must support DP alt mode).

What's in the Box
Included in Package: Instruction Manual : Multiport Adapter

Packaging Information
Package Height: 30 mm [1.2 in]

Hardware
Industry Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0 and 1.1

Fast-Charge Port(s): No
Displays Supported: 1
Chipset ID: Genesys Logic - GL3523
Realtek - RTL8153
Eton Technology - EJ899T
Parade Technologies - PS176
ITE -IT6516

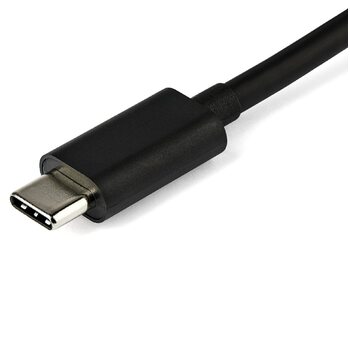

Bus Type: USB-C
4K Support: Yes

Environmental
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 0~90% RH

Connector(s)
Connector Type(s): VGA (15 pin, High Density D-Sub) Female : USB Type-C (24 pin) USB 3.0 (5Gbps) Male : USB Type-A (9 pin) USB 3.0 (5 Gbps) Female : RJ-45 Female : HDMI (19 pin) Female

Model # DKT30CHVCM
Barcode # 065030880152
Brand STAR TECH
Shipping Weight 0.1700kg
Shipping Width 0.180m
Shipping Height 0.030m
Shipping Length 0.140m
Shipping Cubic 0.000745000m3
Type Docking Station
