USB-C adapter for Mac & Windows - GbE port

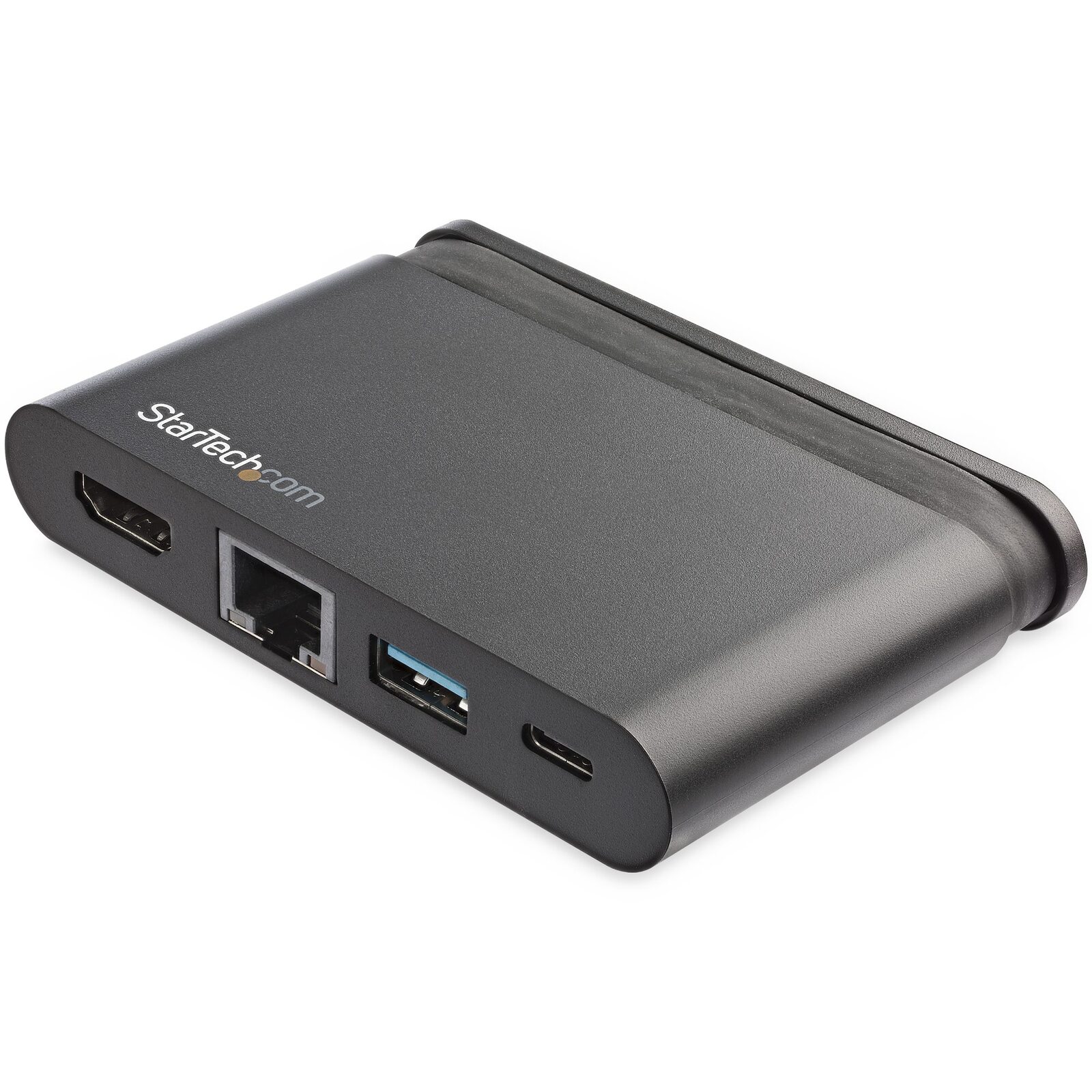

Here’s an all-in-one USB-C adapter for your MacBook Pro, Dell XPS or other USB-C™ laptop, with all the ports you need for maximum productivity. The USB-C multiport adapter with HDMI turns your laptop into a portable workstation, adding 4K video, Gigabit Ethernet, and two USB 3.0 ports, plus laptop charging with Power Delivery 3.0.
Connect a UHD 4K HDMI Monitor
Use the USB-C adapter as a portable docking station, connecting your laptop to a 4K HDMI monitor (4096 x 2160p) to create a workstation or make presentations. It also connects to an ultrawide monitor.
Connect Your Devices
The USB-C adapter gives you one USB-C port to connect a USB-C device, and one USB-A port to attach a mouse, keyboard or other peripheral. Fast-charge your mobile device using the USB-A port.
Laptop Charging with PD 3.0
With support for 100W Power Delivery 3.0, the USB Type-C multiport adapter provides up to 92W laptop charging, and powers your peripherals when connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB data disruption when you unplug to switch power sources (USB-C power adapter to bus power).

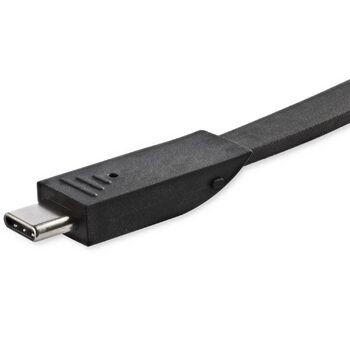

Wrap-Around Cable
The USB Type-C™ multiport adapter has a built-in wrap-around cable for easy connection and portability.
Reliable Network Connectivity
The Gigabit Ethernet port ensures reliable wired network access.
(DKT30CHCPD)
This item comes with a 36 months warranty
Packaging Information
Package Length: 17 cm [6.7 in]
Package Width: 14.2 cm [5.6 in]
Shipping (Package) Weight: 135 g [4.8 oz]
Performance
Auto MDIX: Yes
Full Duplex Support: Yes
Maximum Data Transfer Rate: 5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions: 4096 x 2160p @ 24Hz or 3840 x 2160p (HDMI) @ 30Hz
UltraWide - 3440 x 1440p @ 60 Hz or 2560x1080 at 60Hz
Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.
Type and Rate: USB 3.0 - 5 Gbit/s
UASP Support: Yes
Physical Characteristics
Color: Black
Material: Plastic
Product Height: 0.8 cm [0.3 in]
Product Length: 167 mm [6.6 in]
Product Width: 38 mm [1.5 in]
Weight of Product: 127 g [4.5 oz]
Power
Power Delivery: 100W
Power Source: USB-Powered
Prominence
Description CDW 75 - 1st Line: StarTech.com USB C Multiport Adapter - 4K HDMI Mini Dock PD/USB-A/USB-C/GbE
Software
OS Compatibility: Windows® 7, 8, 8.1, 10
macOS 10.9 to 10.15, 11.0
Chrome OS™
Special Notes / Requirements
Note: A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K) : Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 or 3.0 and DP alt mode. : The adapter can connect to a host laptop’s USB-C port that doesn’t support USB Power Delivery 2.0 or 3.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop. : Through support of USB Power Delivery 3.0, the multiport adapter supports Fast Role Swap which prevents USB data disruption when you unplug to switch power sources (USB-C power adapter to bus power). : USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps. : Your laptop may have specific requirements for charging. This USB-C multiport adapter supports USB Power Delivery 3.0, up to 100W. When using your laptop’s USB-C power adapter, the multiport adapter powers both the adapter (with attached peripherals) and your laptop - with up to 92W charging available for laptop charging. For more information on your laptop’s charging requirements, refer to the manufacturer of your laptop.
System and Cable Requirements: A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 or PD 3.0 and DP alt mode) : Optional: USB-C power adapter (for example, your laptop’s USB-C based power adapter)
What's in the Box
Included in Package: instruction manual : multiport adapter
Packaging Information
Package Height: 30 mm [1.2 in]
Hardware
Industry Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0 and 1.1
Fast-Charge Port(s): Yes
Displays Supported: 1
Chipset ID: VIA/VLI - VL102
VIA/VLI - VL817
Parade Technologies - PS176
RealTek - RTL8153
Bus Type: USB-C
4K Support: Yes
Environmental
Storage Temperature: -10°C to 70°C (14°F to 158°F)
Operating Temperature: 0°C to 45°C (32°F to 113°F)
Humidity: 10%-85%RH
Connector(s)
Connector Type(s): USB Type-C (24 pin) USB 3.0 (5Gbps) Male : USB Type-C (24 pin) USB 3.0 (5Gbps) Female : USB 3.0 A (Fast-Charge, 9 pin) Female: RJ-45 Female : HDMI (19 pin) Female
Model # | DKT30CHCPD |
Barcode # | 065030879187 |
Brand | STAR TECH |
Shipping Weight | 0.1400kg |
Shipping Width | 0.170m |
Shipping Height | 0.030m |
Shipping Length | 0.140m |
Shipping Cubic | 0.000724000m3 |
Type | Docking Station |
