Simplecom EC412 Dual M.2 to 4x PCI-E/SATA 6G Expansion Card

Simplecom EC412 Dual M.2 (B Key and M Key) to PCI-E x4 and SATA 6G Expansion Card

EC412 is a PCI Express expansion card designed to add NGFF M.2 devices such as SSD onto existing PC motherboard. Dual M.2 slots support both PCI-E based M.2 device (M key, NVMe) to run via the faster PCI-E interface at up to 32Gbps, and legacy SATA based M.2 slot (B key) for connecting to a SATA III port.

Features

• Connects one M.2 port (M key) into one PCI-E x4 interface

• Connects a second M.2 port (B key) into SATA 6G interface

• Supports two M.2 SSD simultaneously

• Supports PCI-E interface (M key) at up to 32Gbps

• Supports SATA interface (B key) at up to 6Gbps

• No driver installation required

Interface: PCI Express X4 / SATA 6Gbps
SSD Interface: M.2(NGFF)
Module Key: B key (SATA-based), M key (PCI-E 4X-based, NVMe)
Number of Drives: 2
Supported Type M.2 SSD: 2230, 2242, 2260 and 2280
Supported Length of M.2 SSD:  30mm, 42mm, 60mm, 80mm

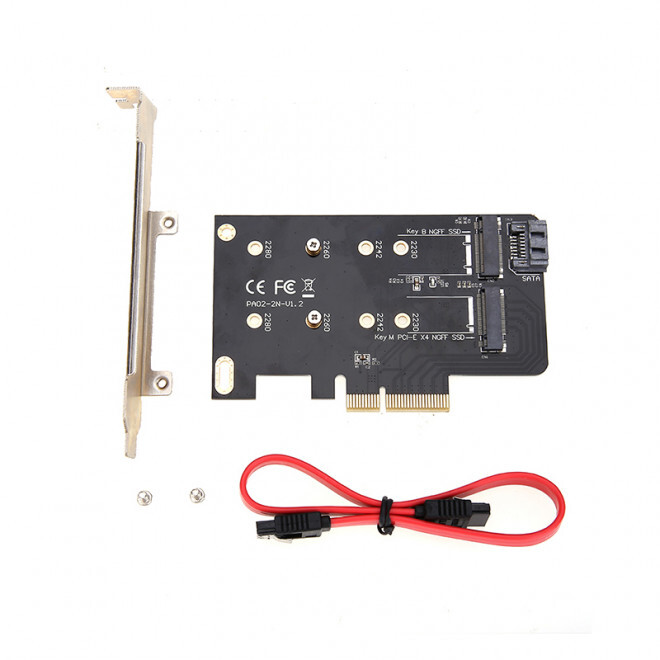

Includes:

• 1x PCI Express Expansion Card

• 2x Mounting Screws

• 1x SATA Cable

Important Note:

• M key M.2 is for use with PCI-E (NVMe) SSD only, B key M.2 is for use with SATA SSD only.

• B key M.2 SSD requires SATA 7 pin cable connected to motherboard to function.

• NVMe M.2 SSD requires the use of Intel 9 series (Z97 H97 Z170 X99) or higher version chipset based motherboard with Windows 8 or higher operating system.

• It’s recommended to update your motherboard’s driver and BIOS to the latest version before install the Expansion Card.
