2 Port Dual DisplayPort USB KVM Switch w/ Audio & USB Hub

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

2 Port Dual DisplayPort USB KVM Switch w/ Audio & USB Hub

The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter.

Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560x1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input.

Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.

(SV231DPDDUA)

This item comes with a 36 months warranty

Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560x1600 (

Hardware
PC Video Type: DisplayPort
Rack-Mountable: No

Indicators
LED Indicators: Green - On-Line : Red - Selected PC

Packaging Information
Package Height: 10 cm [3.9 in]
Package Length: 18.7 cm [7.4 in]
Package Width: 24.9 cm [9.8 in]
Shipping (Package) Weight: 1.2 kg [2.6 lb]

Performance
Hot-Key Selection: Yes
IP Control: No
Maximum Digital Resolutions: WQXGA - 2560 x 1600
Maximum Number of Users: 1
MTBF: 138000 hours
On-Screen Display: No
Port Selection Support: Push Button and Hotkeys
Wide Screen Supported: Yes

Physical Characteristics
Color: Black
Material: Steel
Product Depth: 100 mm [3.9 in]
Product Height: 5.8 cm [2.3 in]
Product Width: 16.1 cm [6.3 in]
Weight of Product: 734 g [25.9 oz]

Power
Center Tip Polarity: Positive
Input Current: 0.8A
Input Voltage: 100 - 240 AC
Output Current: 1.5A
Output Voltage: 12V DC
Plug Type: M
Power Consumption (In Watts): 18
Power Source: AC Adapter Included

Prominence
Description CDW 75 - 1st Line: StarTech.com 2 Port Dual DisplayPort USB KVM Switch w/ Audio & USB Hub

Software
OS Compatibility: OS independent; No software or drivers required

What's in the Box
Included in Package: 2-port dual display DisplayPort KVM

Hardware
PC Interface: USB
Number of Monitors Supported: 2
KVM Ports: 2
Daisy-Chain: No
Cables Included: No
Audio: Yes

Environmental
Storage Temperature: -20°C to 50°C (-4°F to 140°F)
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 0~80% RH

Connector(s)
Host Connectors: USB B (4 pin) Female : DisplayPort (20 pin) Female : 3.5 mm Mini-Jack (3 Position) Female
Console Interface(s): USB Type-A (4 pin) USB 2.0 Female : DisplayPort (20 pin) Female : 3.5 mm Mini-Jack (3 Position) Female

What's in the Box

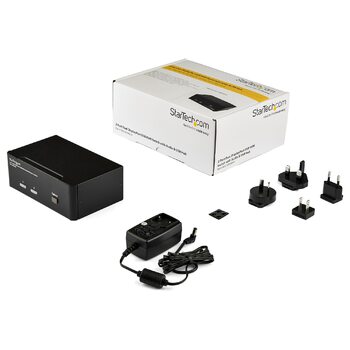

Included in Package: instruction manual : universal power adapter (NA/EU/UK/AU)

Model # SV231DPDDUA
Barcode # 065030839266
Brand STAR TECH
Shipping Weight 1.1900kg
Shipping Width 0.190m
Shipping Height 0.100m
Shipping Length 0.250m
Shipping Cubic 0.004656000m3
Type KVM Switch Box
