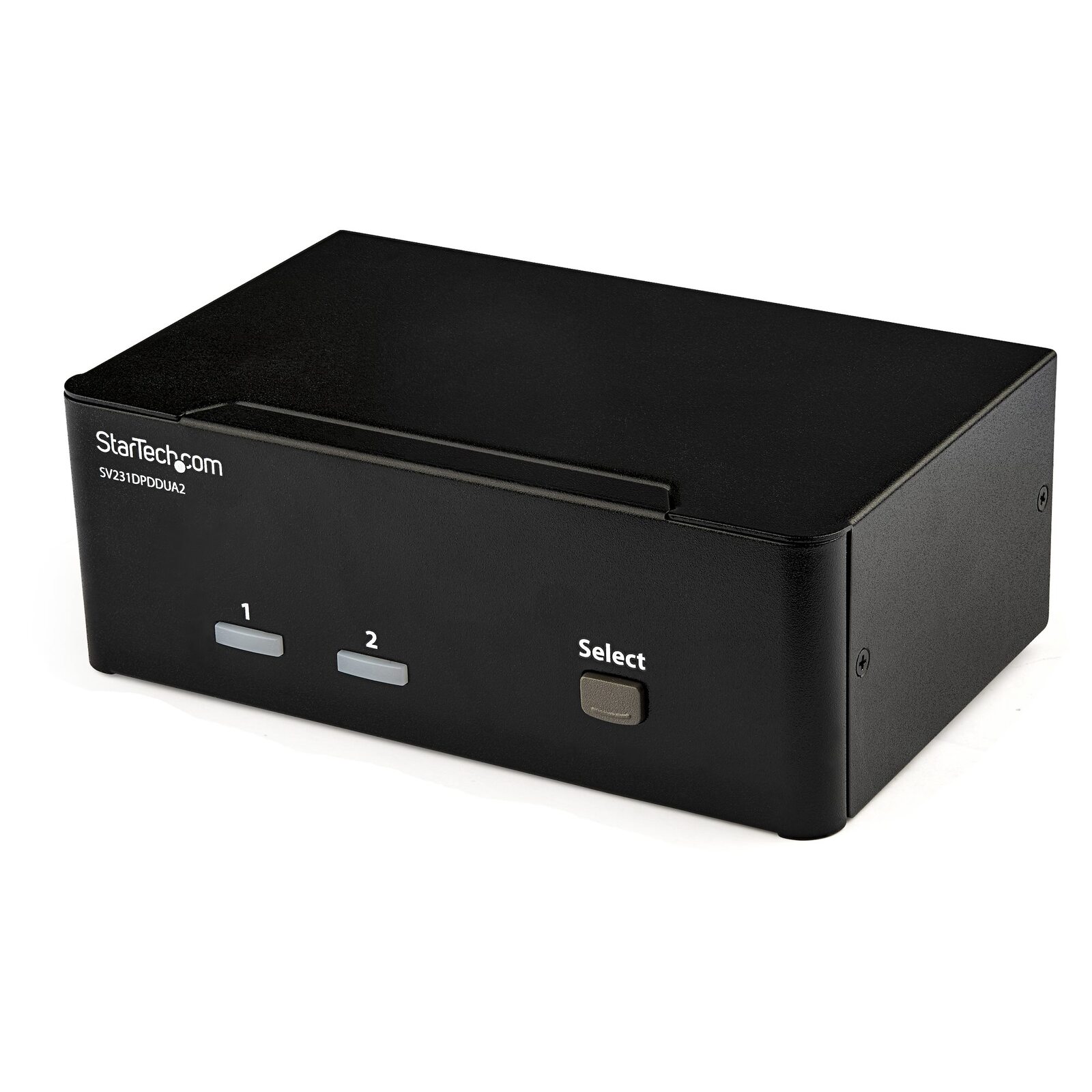

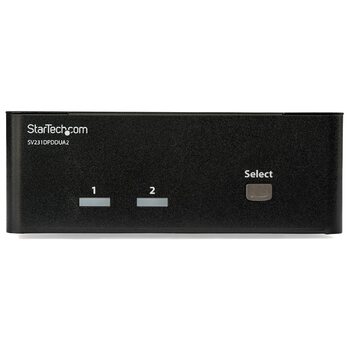

4K Dual KVM Switch for DisplayPort Computers and Monitors

This dual DisplayPort KVM switch combines next-generation digital display standards with seamless KVM control. The 2-port KVM switch features audio and USB peripheral support along with dual-display capability, which makes it easy to create a multimedia workstation that can switch between two dual-head or twin DisplayPort systems.

Maximize productivity with dual video

With support for two DisplayPort video inputs and two different computers, this KVM switch helps maximize productivity.You can access multiple computers, giving you the freedom to multitask and increase your productivity. Each of the DP ports supports resolutions up to 4K for maximum screen viewing space.

You can also use low-cost adapters to achieve a dual-monitor setup using your computer's secondary HDMI or DVI port.

Astonishing picture quality

The dual DisplayPort KVM switch supports resolutions up to Ultra HD 4K at 60Hz, and can drive two large DP displays with ease. This makes it the ideal solution for creating workstations where high-quality imaging is critical, such as for graphic design.

Complete multimedia control

The KVM switch features auxiliary 3.5 mm audio ports that let you share independent analog audio, from each of your connected computers, with your desktop speaker set. With independent audio support, along with dual 4K DP video, you get full multimedia control between different computers which makes this the perfect KVM switch for creative professional applications such as video and sound design or editing.

Convenient peripheral sharing

This KVM switch offers a built-in 2-port USB hub that's separate from your HID keyboard and mouse. This enables you to share USB peripherals between each connected computer and avoid the expense of separate equipment. The USB hub automatically switches your connected USB devices to the selected computer, saving you the hassle and cost of outfitting each of your computers with their own peripherals.

(SV231DPDDUA2)

This item comes with a 24 months warranty

Maximize productivity with dual video

Hardware
PC Video Type: DisplayPort
Rack-Mountable: No

Indicators
LED Indicators: computer LEDs

Packaging Information
Package Height: 97 mm [3.8 in]
Package Length: 24.9 cm [9.8 in]
Package Width: 18.6 cm [7.3 in]
Shipping (Package) Weight: 1.2 kg [2.6 lb]

Performance
Aspect Ratio: 16:9
DVI Support: No
Hot-Key Selection: Yes
IP Control: No
Maximum Digital Resolutions: 3840 x 2160 (Ultra HD 4K) @ 60hz
Maximum Number of Users: 1
MTBF: 138000 hours
On-Screen Display: No
Port Selection Support: Push Button and Hotkeys
Supported Resolutions: 1024x768
1280x720 (High-definition 720p)
1920x1080 (High-definition 1080p)
1920x1200
2560x1600
3840 x 2160 (4K)@ 60hz
Wide Screen Supported: Yes

Physical Characteristics
Color: Black
Material: Steel
Product Depth: 100 mm [3.9 in]
Product Height: 5.8 cm [2.3 in]
Product Length: 100.000
Product Width: 16.1 cm [6.3 in]
Weight of Product: 734 g [25.9 oz]

Power
Center Tip Polarity: Positive
Input Current: 0.6 A
Input Voltage: 100 - 240 AC
Output Current: 1.5 A
Output Voltage: 12V DC
Power Source: AC Adapter Included

Prominence
Description CDW 75 - 1st Line: StarTech.com 2 Port DisplayPort Dual-Monitor KVM Switch - 4K 60Hz

What's in the Box
Included in Package: instruction manual

Hardware
PC Interface: USB
Number of Monitors Supported: 2
KVM Ports: 2
Daisy-Chain: No
Cables Included: No
Audio: Yes

Environmental
Storage Temperature: -20°C to 50°C (-4°F to 140°F)
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 0~80% RH

Connector(s)

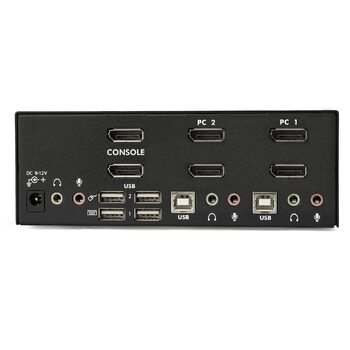

Host Connectors: USB B (4 pin) Female : DisplayPort (20 pin) Female : 3.5 mm Mini-Jack (3 Position) Female
Console Interface(s): USB Type-A (4 pin) USB 2.0 Female : DisplayPort (20 pin) Female : 3.5 mm Mini-Jack (3 Position) Female

What's in the Box
Included in Package: KVM switch : rubber feet : universal power adapter (NA/JP, EU, UK, ANZ)

Model # SV231DPDDUA2
Barcode # 065030867177
Brand STAR TECH
Shipping Weight 1.2000kg
Shipping Width 0.250m
Shipping Height 0.100m
Shipping Length 0.190m
Shipping Cubic 0.004492000m3
Type KVM Switch Box
