4 Port USB DisplayPort KVM Switch with Audio
Reviews
Be The First To Review This Product!
Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.
4 Port USB DisplayPort KVM Switch with Audio
The SV431DPUA 4 Port USB DisplayPort KVM Switch with Audio combines next generation display standards with seamless KVM control of up to 4 connected PC or Mac computers.
Featuring DisplayPort resolutions of 2560x1600 @60Hz, as well as offering both 7.1 HD digital audio (with supporting displays and sources) and separate 3.5mm stereo audio support. An integrated USB 2.0 hub allows you to share 2 additional peripherals among attached computers as if they were directly connected.
Suitable for high quality static imaging applications such as health care (MRI, X-ray diagnostics, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.

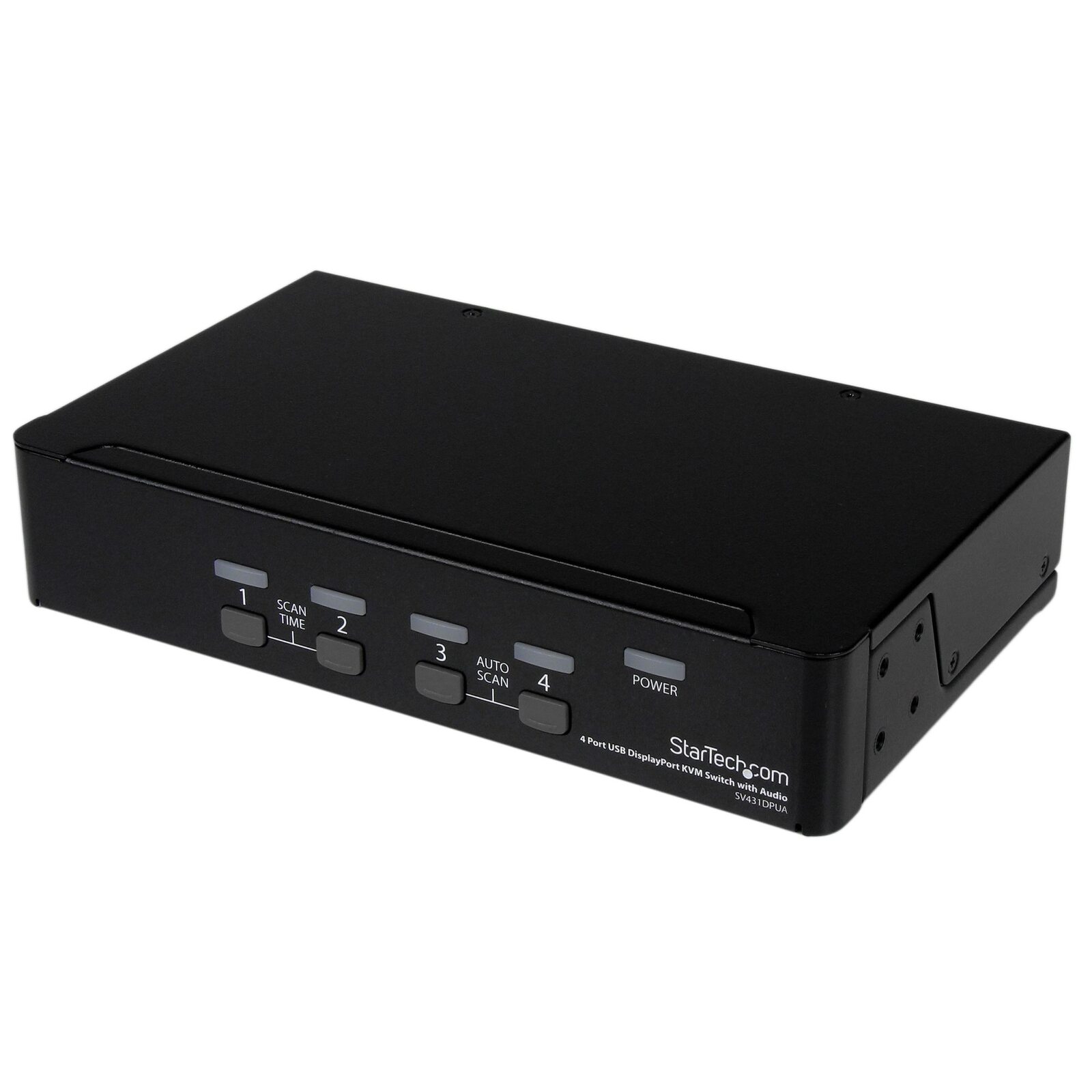

A simple yet comprehensive solution, the 4-port KVM features both front-panel push-button and hotkey switching, and offers a small form factor with rear connection ports, to minimize workspace disruptions.
(SV431DPUA)
This item comes with a 36 months warranty
60Hz, as well as offering both 7.1 HD digital audio (with supporting displays and sources) and separate 3.5mm stereo audio support
Hardware
PC Video Type: DisplayPort
Rack-Mountable: Optional
Indicators
LED Indicators: Green - Online indicator (One LED per port) : Power : Red - Select indicator (One LED per port)
Packaging Information
Package Height: 87 mm [3.4 in]
Package Length: 41.1 cm [16.2 in]
Package Width: 21.4 cm [8.4 in]
Shipping (Package) Weight: 1.6 kg [3.6 lb]
Performance
DVI Support: No
Hot-Key Selection: Yes
IP Control: No
Maximum Digital Resolutions: 2560 x 1600 @ 60Hz
Maximum Number of Users: 1
MTBF: 136000 hours
On-Screen Display: No
Port Selection Support: Push Button and Hotkeys
Wide Screen Supported: Yes
Physical Characteristics
Color: Black
Material: Steel
Product Depth: 130.6 mm [5.1 in]
Product Height: 4.4 cm [1.7 in]
Product Width: 22.1 cm [8.7 in]
Weight of Product: 1 kg [2.3 lb]
Power
Center Tip Polarity: Positive
Input Current: 0.8A
Input Voltage: 100 - 240 AC
Output Current: 1.5A
Output Voltage: 12V DC
Plug Type: M
Power Consumption (In Watts): 18
Power Source: AC Adapter Included
Prominence
Description CDW 75 - 1st Line: StarTech.com 4 Port USB DisplayPort KVM Switch with Audio
Hardware
PC Interface: USB
Number of Monitors Supported: 1
KVM Ports: 4
Daisy-Chain: No
Cables Included: No
Audio: Yes
Environmental
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 0~80% RH
Connector(s)

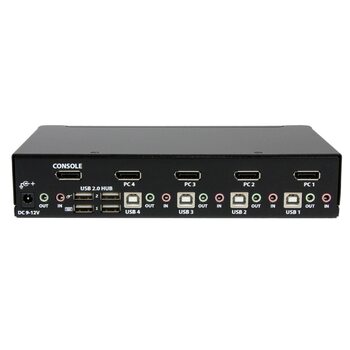

Host Connectors: USB B (4 pin) Female : DisplayPort (20 pin) Female : 3.5 mm Mini-Jack (3 Position) Female
Console Interface(s): USB Type-A (4 pin) USB 2.0 Female : DisplayPort (20 pin) Female : 3.5 mm Mini-Jack (3 Position) Female
Software
OS Compatibility: OS independent; No software or drivers required
What's in the Box
Included in Package: 4-port DisplayPort KVM switch : foot pads : instruction manual : universal power adapter (NA/UK/EU/AU)
Model # | SV431DPUA |
Barcode # | 065030837545 |
Brand | STAR TECH |
Shipping Weight | 1.6200kg |
Shipping Width | 0.410m |
Shipping Height | 0.090m |
Shipping Length | 0.210m |
Shipping Cubic | 0.007652000m3 |
Type | KVM Switch Box |
