2 Port USB HDMI KVM Switch with Audio and USB 2.0 Hub

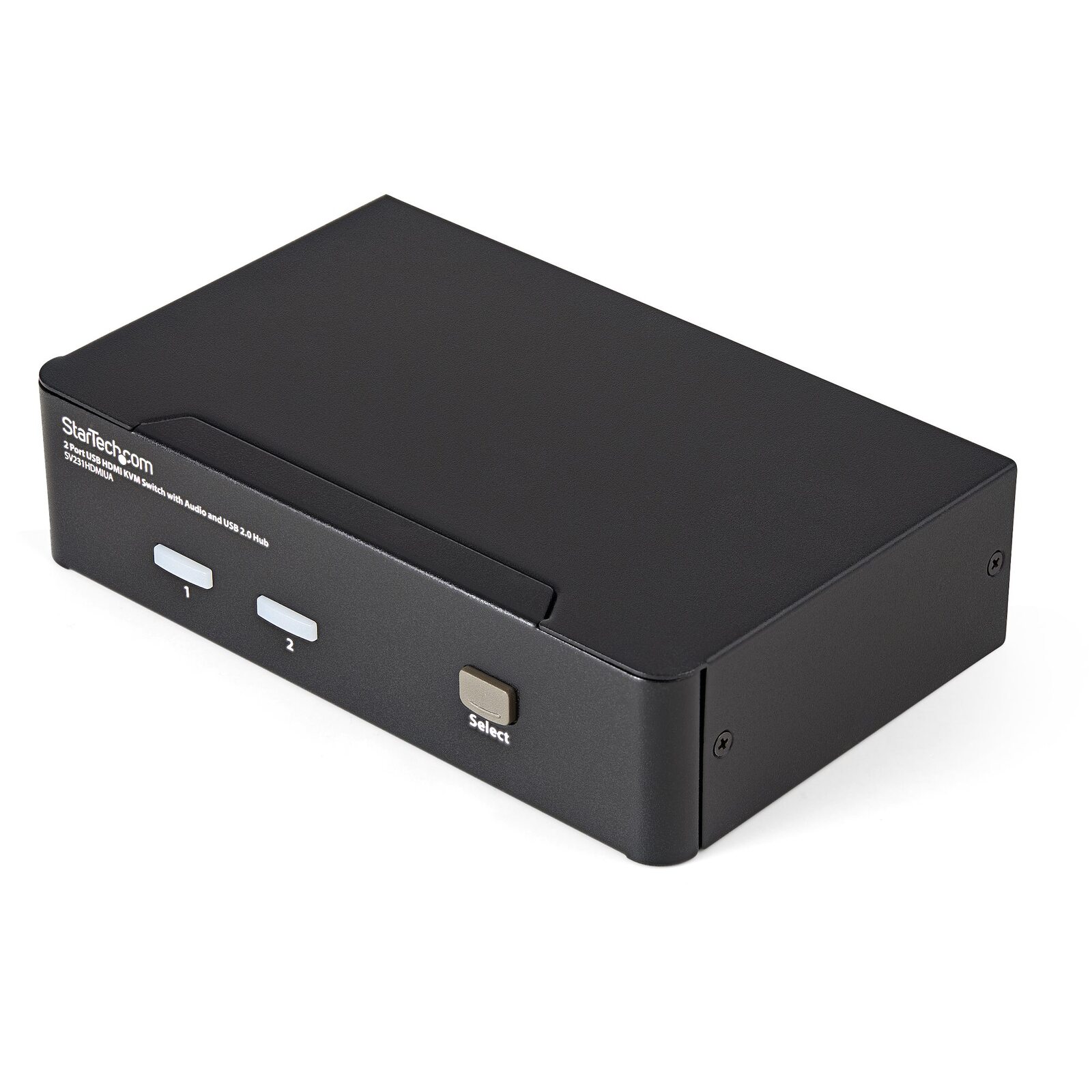

The SV231HDMIUA 2-port USB HDMI® KVM Switch lets you control two USB-enabled multimedia computers or devices with HDMI video interfaces, using a single peripheral set/console (USB keyboard, mouse, monitor, speakers and microphone).

A highly versatile KVM solution, the USB HDMI KVM Switch features an integrated 2-port USB 2.0 hub that lets selected computers access shared high speed USB devices, eliminating the cost of duplicate USB peripheral purchases.

Ensuring high quality video capability, the HDMI KVM switch supports HD resolutions of up to 1920 x 1200. Offering genuine digital signal transmission over the cable, this switch can be used to share one HD panel between multiple HDMI sources such as Blu-Ray players, Video Game consoles and HD media centers.

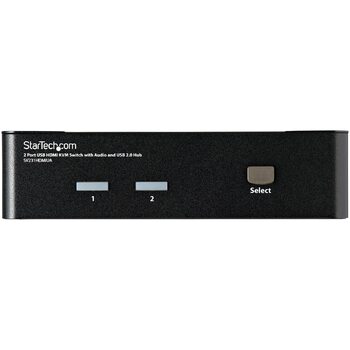

The switch also supports audio and microphone switching functions and allows you to select connected computers, USB device hub ports and audio/mic channels either simultaneously or independently using either front-panel push-buttons or keyboard hotkeys.

(SV231HDMIUA)

This item comes with a 36 months warranty

Ensuring high quality video capability, the HDMI KVM switch supports HD resolutions of up to 1920 x 1200

Hardware
PC Video Type: HDMI
Rack-Mountable: No

Indicators
LED Indicators: Online/Active (Green - Connected PC is online, Red - PC is selected)

Packaging Information
Package Height: 10 cm [3.9 in]
Package Length: 25 cm [9.8 in]
Package Width: 18.8 cm [7.4 in]
Shipping (Package) Weight: 1.1 kg [2.4 lb]

Performance
Hot-Key Selection: Yes
IP Control: No
Maximum Digital Resolutions: 1920 x 1200
Maximum Number of Users: 1
MTBF: 126813 hours
On-Screen Display: No
Port Selection Support: Push Button and Hotkeys
Wide Screen Supported: Yes

Physical Characteristics
Color: Black
Material: Steel
Product Depth: 70 mm [2.8 in]
Product Height: 4 cm [1.6 in]
Product Width: 12.5 cm [4.9 in]
Weight of Product: 634 g [22.4 oz]

Power
Center Tip Polarity: Positive
Input Current: 0.8A
Input Voltage: 100 - 240 AC
Output Current: 1.5A
Output Voltage: 12V DC
Plug Type: M
Power Consumption (In Watts): 18
Power Source: AC Adapter Included

Prominence
Description CDW 75 - 1st Line: StarTech.com 2 Port USB HDMI KVM Switch with Audio and USB 2.0 Hub - KVM /

Software
OS Compatibility: OS independent; No software or drivers required

What's in the Box
Included in Package: 2 Port HDMI KVM : Package of Rubber feet

Hardware
PC Interface: USB
Number of Monitors Supported: 1
KVM Ports: 2
Daisy-Chain: No
Cables Included: No
Audio: Yes

Environmental
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 0~80% RH

Connector(s)

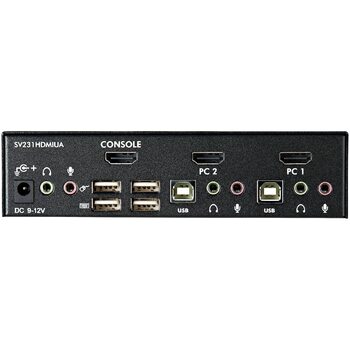

Host Connectors: USB B (4 pin) Female : HDMI (19 pin) Female : 3.5 mm Mini-Jack (3 Position) Female
Console Interface(s): USB Type-A (4 pin) USB 2.0 Female : HDMI (19 pin) Female : 3.5 mm Mini-Jack (3 Position) Female

What's in the Box
Included in Package: Power Adapter : User Manual

Model # SV231HDMIUA
Barcode # 065030837521
Brand STAR TECH
Shipping Weight 1.0800kg
Shipping Width 0.250m
Shipping Height 0.100m
Shipping Length 0.190m
Shipping Cubic 0.004700000m3
Type KVM Switch Box
