2 Port Professional USB DisplayPort KVM Switch with Audio

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

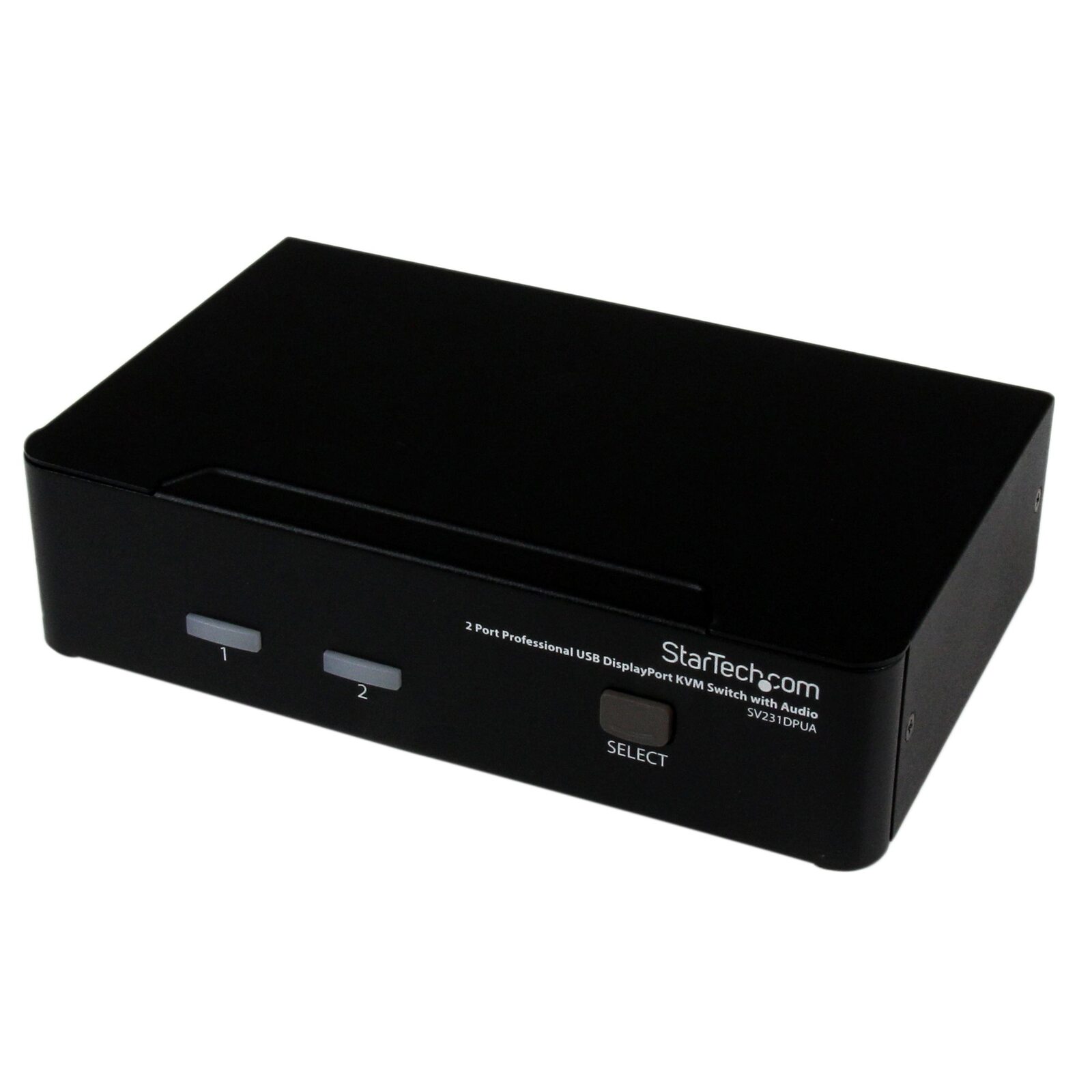

2 Port Professional USB DisplayPort KVM Switch with Audio

The SV231DPUA 2-Port USB DisplayPort KVM Switch delivers dual computer KVM control, for demanding high definition multimedia applications. Supporting DisplayPort connections with a native resolution of 2560 x 1600, and support for both 7.1 HD digital audio (when connected to supporting displays and sources) and 3.5mm stereo analog audio/mic.

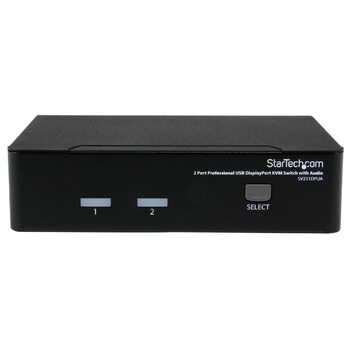

A simple, yet comprehensive KVM solution, the 2-port switch features both front-panel push-buttons and hotkey switching, and offers a small form factor design with connection ports situated on the rear panel. A Plug-and-Play USB 2.0 hub port allows you to share an additional USB peripheral between the 2 connected computers, avoiding the expense of purchasing duplicate peripheral devices.

A suitable solution for medical applications (MRI, X-ray diagnostics etc.), the KVM switch supports a maximum resolution of 3840 x 2400 at a reduced refresh rate.

(SV231DPUA)

This item comes with a 36 months warranty

A simple, yet comprehensive KVM solution, the 2-port switch features both front-panel push-buttons and hotkey switching, and offers a small form factor design with connection ports situated on the rear panel

Hardware
PC Video Type: DisplayPort
Rack-Mountable: No

Indicators
LED Indicators: Green - Online indicator (One LED per port) : Red - Select indicator (One LED per port)

Packaging Information
Package Height: 18.1 cm [7.1 in]
Package Length: 25 cm [9.8 in]
Package Width: 10 cm [3.9 in]
Shipping (Package) Weight: 1.3 kg [2.9 lb]

Performance
DVI Support: No
Hot-Key Selection: Yes
IP Control: No
Maximum Digital Resolutions: 2560 x 1600 @ 60Hz
Maximum Number of Users: 1
MTBF: 127000 hours
On-Screen Display: No
Port Selection Support: Push Button and Hotkeys
Wide Screen Supported: Yes

Physical Characteristics
Color: Black
Material: Steel
Product Depth: 130 mm [5.1 in]
Product Height: 4.4 cm [1.7 in]
Product Length: 160.000
Product Width: 10 cm [3.9 in]
Weight of Product: 1.1 kg [2.4 lb]

Power
Center Tip Polarity: Positive
Input Current: 0.8A
Input Voltage: 100 - 240 AC
Output Current: 2A
Output Voltage: 12V DC
Plug Type: M
Power Consumption (In Watts): 24
Power Source: AC Adapter Included

Prominence
Description CDW 75 - 1st Line: StarTech.com 2 Port Professional USB DisplayPort KVM Switch with Audio - KV

Hardware
PC Interface: USB
Number of Monitors Supported: 1
KVM Ports: 2
Daisy-Chain: No
Cables Included: No
Audio: Yes

Environmental
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 0~80% RH

Connector(s)

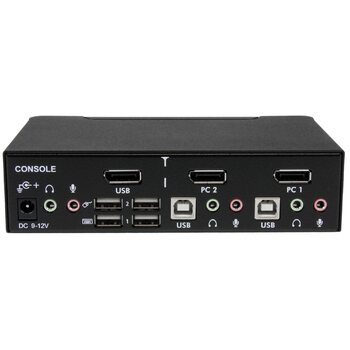

Host Connectors: USB B (4 pin) Female : DisplayPort (20 pin) Female : 3.5 mm Mini-Jack (3 Position) Female
Console Interface(s): USB Type-A (4 pin) USB 2.0 Female : DisplayPort (20 pin) Female : 3.5 mm Mini-Jack (3 Position) Female

Software
OS Compatibility: OS independent; No software or drivers required

What's in the Box
Included in Package: 2-port DisplayPort KVM switch : foot pads : instruction manual : universal power adapter (NA/UK/EU/AU)

Model # SV231DPUA
Barcode # 065030839952
Brand STAR TECH
Shipping Weight 1.3000kg
Shipping Width 0.250m
Shipping Height 0.180m
Shipping Length 0.100m
Shipping Cubic 0.004525000m3
Type KVM Switch Box
