1U Single Port KVM Console for Server Rack - 17in

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

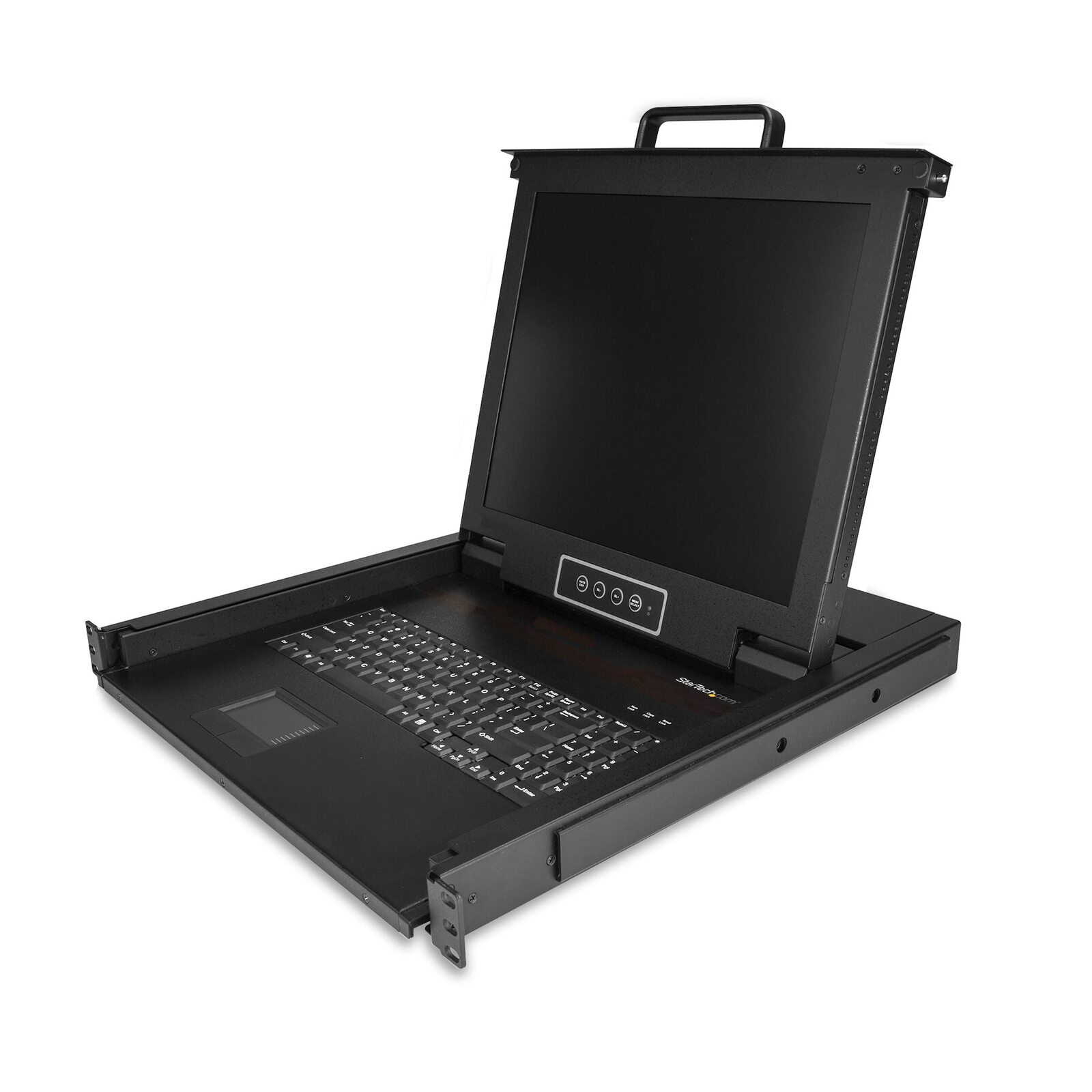

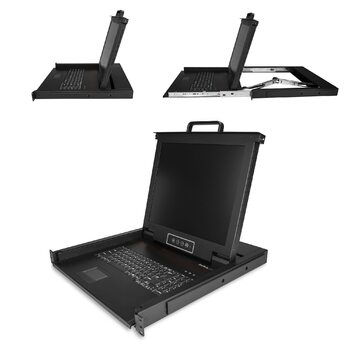

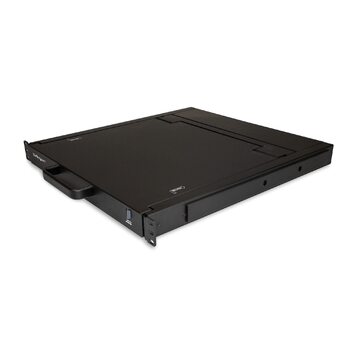

1U Single Port KVM Console for Server Rack - 17in

Providing centralized control of your PC, server, or KVM switch, this single-port rackmount KVM console gives you easy access to your connected system. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.

An All-Inclusive Solution 

The 1U rackmount console features a built-in keyboard, a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.

This single-port KVM console includes everything you need to set up right out of the box: 

  • 1 VGA KVM Cable
  • Mounting Rails
  • M5 Cage Nuts and Screws

Simple System Integration

The rack console features a single-port KVM module, which can be connected directly to a server or PC, or to a KVM switch for access to multiple systems. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.

StarTech.com Rack Consoles

Rack consoles provide convenient, rack-mounted control options for single servers or entire server rooms. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space.

(RKCONS1701)

This item comes with a 24 months warranty

The 1Urackmount consolefeatures a built-in keyboard,atouchpad for intuitive control,anda 17-inch LCD display that supports resolutions up to 1280x1024.

Hardware
U Height: 1U

Indicators
LED Indicators: Power / Status LED

Packaging Information
Package Height: 19 cm [7.5 in]
Package Length: 76.5 cm [30.1 in]
Package Width: 61.5 cm [24.2 in]
Shipping (Package) Weight: 17.1 kg [37.8 lb]

Performance
Aspect Ratio: 5:4
Brightness: 250 cd/m²
Color Depth: 8-bit, 16.7M colors
Contrast Ratio: 1000:1
IP Control: No
Maximum Analog Resolutions: 1280 x 1024
Maximum Number of Users: 1
MTBF: 50, 000 Hrs
Pixel Pitch Support: 0.264 x 0.264 mm
Response Time: 5ms
Supported Resolutions: Resolutions up to 1280 x 1024 @ 60Hz
Viewing Angle: 170° (H), 160° (V)

Physical Characteristics
Cable Length: 6ft
Color: Black
Material: Steel
Maximum Mounting Depth: 79 cm [31.1 in]
Minimum Mounting Depth: 45 cm [17.7 in]
Product Height: 4.3 cm [1.7 in]
Product Length: 47.1 cm [18.5 in]
Product Width: 44.8 cm [17.6 in]
Weight of Product: 11.7 kg [25.9 lb]

Power
Input Current: 1.5A
Input Voltage: 100 - 240 AC
Power Consumption (In Watts): 13W
Power Source: International Power Cords

Prominence
Description CDW 75 - 1st Line: StarTech.com Rackmount KVM Console - 1U 17" LCD VGA KVM Drawer w/Cables USB

Special Notes / Requirements
Note: The minimum mounting depth of this rackmount console is less than the length of the console itself. Please consider the length of the rackmount console when evaluating if it will fit into your rack.

Hardware
Rack-Mountable: Yes
PC Video Type: VGA
PC Interface: USB
Panel Type: Active Matrix TFT LCD
Number of Monitors Supported: 1
KVM Ports: 1
Front Door Key Lock: No
Display Size: 17in
Daisy-Chain: No
Cables Included: Yes
Audio: No

Environmental
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 10 ~ 80% RH (non-condensing)

Connector(s)
Host Connectors: VGA (15 pin, High Density D-Sub) Input Female

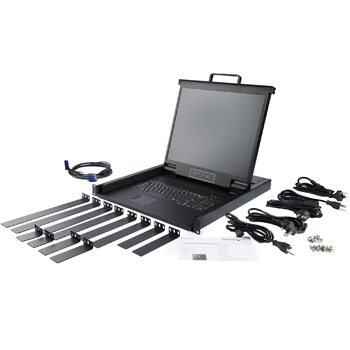

What's in the Box
Included in Package: KVM cable : KVM console : M5 cage nuts : M5 screws : mounting rails : quick-start guide : regional power cords (NA, JP, UK, EU, ANZ)

Model # RKCONS1701
Barcode # 065030872522
Brand STAR TECH
Shipping Weight 17.1000kg
Shipping Width 0.770m
Shipping Height 0.190m
Shipping Length 0.620m
Shipping Cubic 0.089390000m3
Type KVM Switch Box
