2 Port USB 4K60Hz DisplayPort KVM Switch

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

2 Port USB 4K60Hz DisplayPort KVM Switch

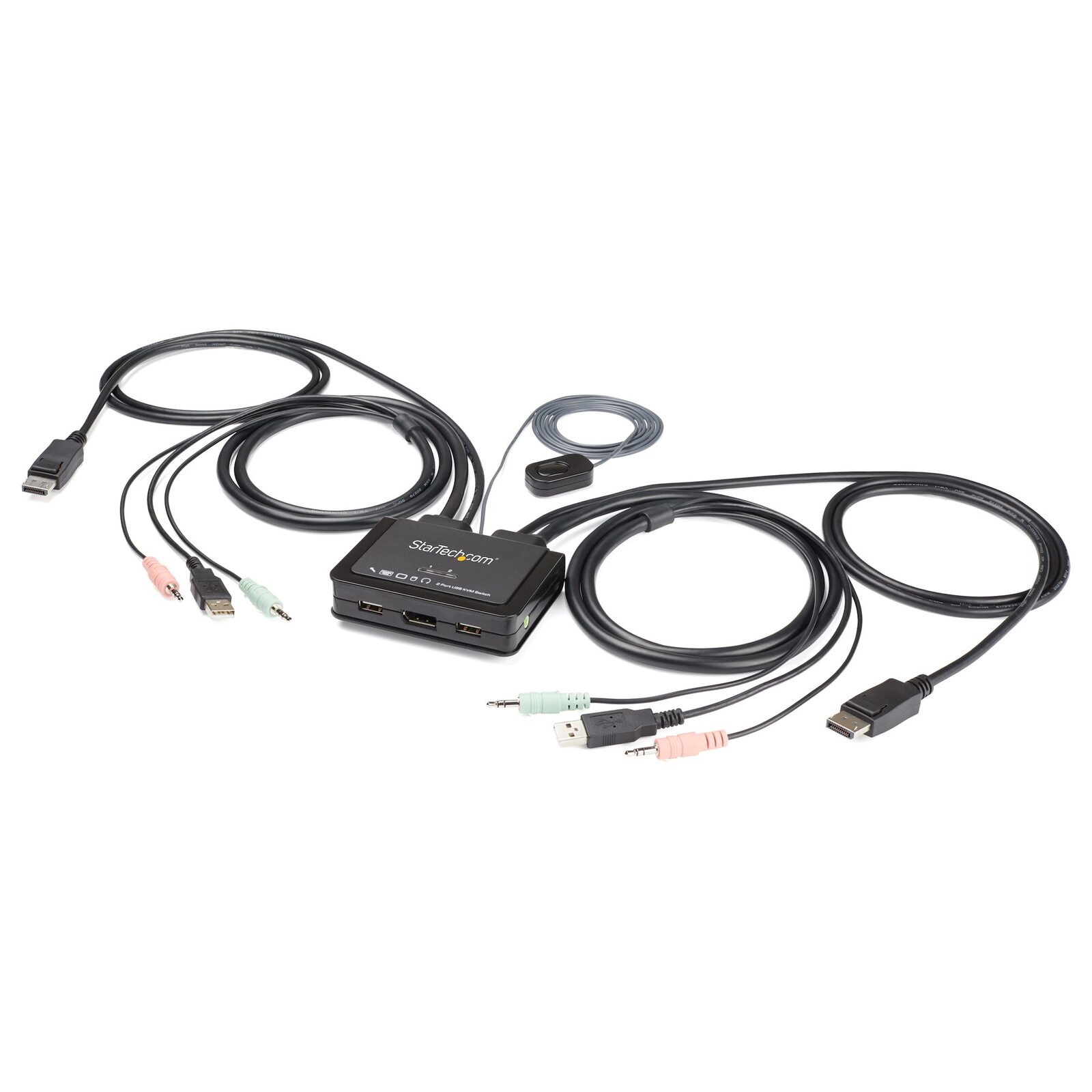

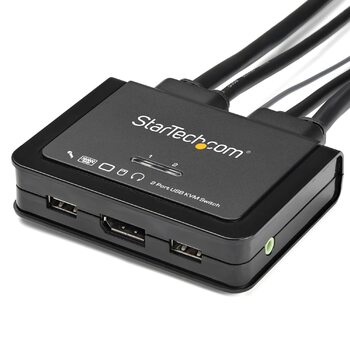

The SV211DPUA4K 2-Port 4K60Hz DisplayPort® Cable KVM Switch with Audio and Remote Switching Control gives you control of two DisplayPort, USB equipped computers with a single monitor, keyboard, mouse and audio peripheral set.

4K60 Picture & Full Audio Support

The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and can drive one large DP display with ease, maximizing viewing space. With support for separate 3.5 mm stereo audio, the KVM switch delivers full audio compatibility across connected computers.

OS Independent

While supporting most PC operating systems, this DP KVM switch is OS independent which means it works with Mac computers (an adapter may be required) and any other laptops, notebooks, and tablets.

Simple to Operate

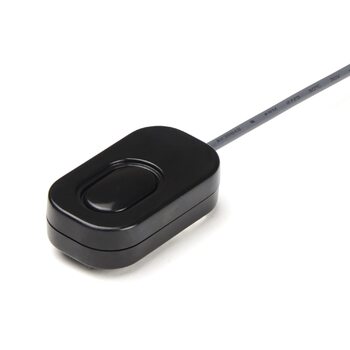

The switch features a remote push-button on a 1.5 meter (4ft) integrated cable that can be placed in an easily accessible location, as well as keyboard hot-keys, and PC or Mac® compatible software for switching between systems.

StarTech.com KVM Switches & Consoles

StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice and monitors.

(SV211DPUA4K)

This item comes with a 24 months warranty

The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and can drive one large DP display with ease, maximizing viewing space

Hardware
PC Video Type: DisplayPort
Rack-Mountable: No

Indicators
LED Indicators: Orange

Packaging Information
Package Height: 16 cm [6.3 in]
Package Length: 210 mm [8.3 in]
Package Width: 6 cm [2.4 in]
Shipping (Package) Weight: 100 g [3.5 oz]

Performance
Audio Specifications: Two Channel Audio Input and Output
Auto Scan: 10, 20, 30, 40, 50, and 60 seconds
Hot-Key Selection: Yes
IP Control: No
Maximum Digital Resolutions: 3840 x 2160 (Ultra HD 4K) @ 60hz
MTBF: 1,012,884 hours
On-Screen Display: No
Port Selection Support: Push Button, Hotkeys, and Software
Video Revision: DisplayPort 1.2
Wide Screen Supported: Yes

Physical Characteristics
Cable Length: 1.2 m [4 ft]
Color: Black
Material: Plastic
Product Height: 0.9 cm [0.4 in]
Product Length: 97 mm [3.8 in]
Product Width: 82.2 mm [3.2 in]
Weight of Product: 350 g [12.4 oz]

Power
Power Source: Bus Powered

Prominence
Description CDW 75 - 1st Line: StarTech.com 2 Port DisplayPort KVM Switch 4K 60Hz - DP 1.2 - USB w/ Cables

Software
OS Compatibility: Windows® 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2016, 2019
Mac OS 10.6 to 10.9

Special Notes / Requirements
Note: In order to access the software and hotkeys of the KVMs, a compatible OS must be installed on the connected host, however the KVM and push button switching functions are OS independent.

What's in the Box
Included in Package: KVM Switch : Quick-Start Guide

Hardware
PC Interface: USB
Number of Monitors Supported: 1
KVM Ports: 2
Daisy-Chain: No
Cables Included: Yes
Audio: Yes

Environmental
Storage Temperature: -20 ~ 60C
Operating Temperature: 0 ~ 40C
Humidity: 0 ~ 90% RH, Non-Condensing

Connector(s)
Host Connectors: USB Type-A (4 pin) USB 2.0 Output Plug : DisplayPort (20 pin) Output Plug : 3.5 mm Mini-Jack (3 Position) Female Output Plug
Console Interface(s): USB Type-A (4 pin) USB 2.0 Input Receptacle : DisplayPort (20 pin) Input Receptacle : 3.5 mm Mini-Jack (3 Position) Female Input Receptacle

Model # SV211DPUA4K
Barcode # 065030882156
Brand STAR TECH
Shipping Weight 0.1000kg
Shipping Width 0.210m
Shipping Height 0.160m
Shipping Length 0.060m
Shipping Cubic 0.002016000m3
Type KVM Switch Box
