HDMI KVM Switch - 4-port KVM - Built-in USB 3.0 Hub - 1080p

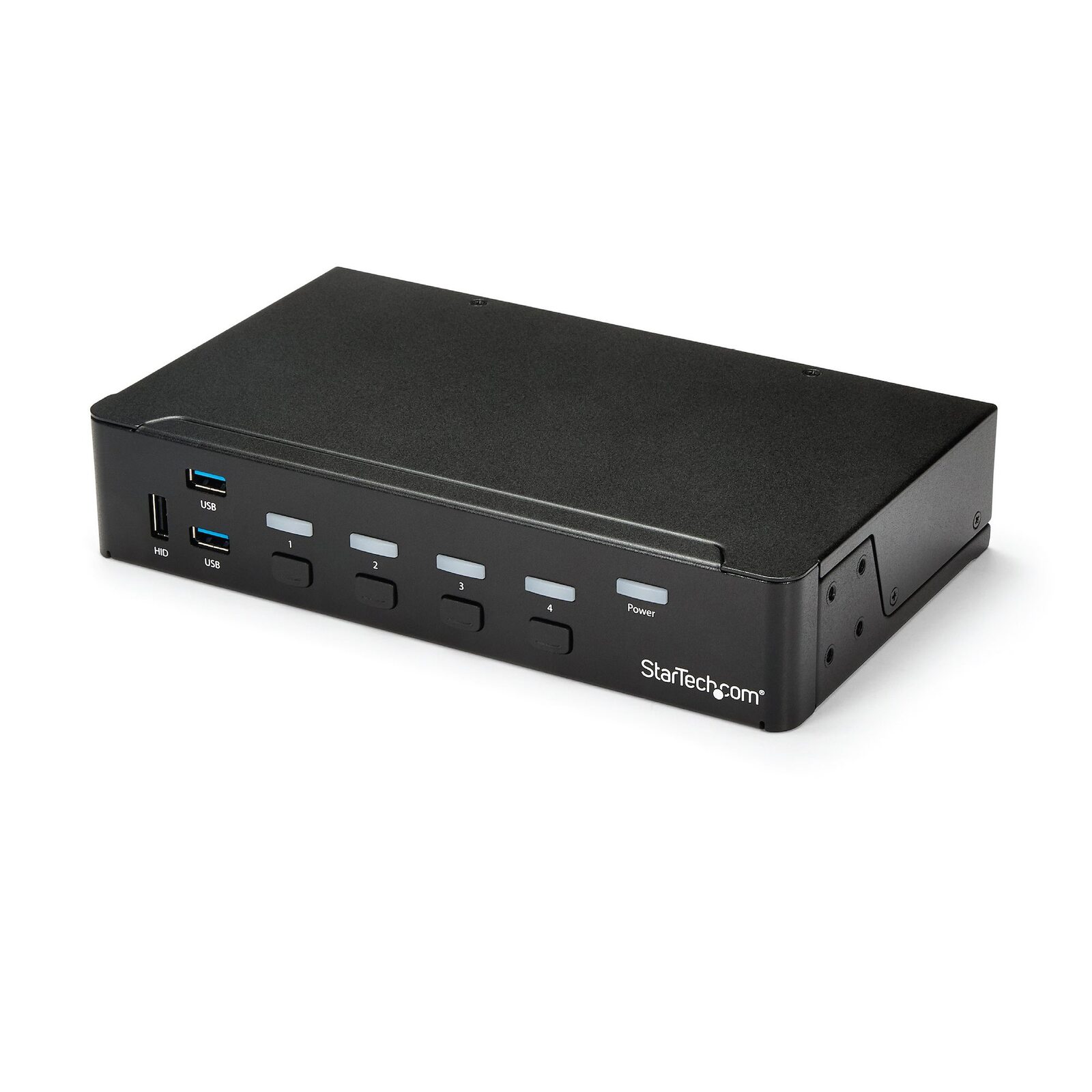

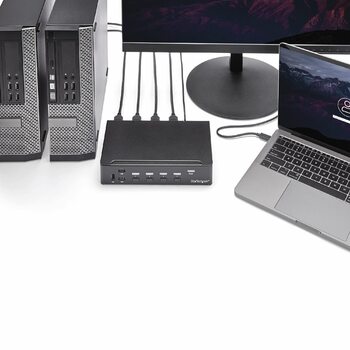

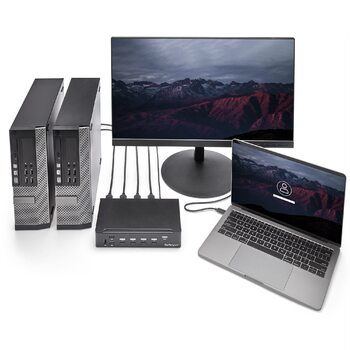

This 4-Port USB 3.0 HDMI® KVM switch lets you control four HDMI computers with a single monitor, keyboard and mouse. The KVM also features 3.5 mm audio and a built-in 3-port USB 3.0 hub.

Convenient and cost-effective USB 3.0 peripheral sharing

This KVM switch offers a built-in 3-port USB 3.0 hub that's separate from your HID keyboard and mouse, so you can share USB peripheral devices between each connected computer and avoid the expense of separate equipment. The USB 3.0 hub automatically switches your connected USB devices to the selected computer, saving you the hassle of  disconnecting and reconnecting peripherals.

With support for USB 3.0, you can achieve data transfer rates up to 5Gbps, to ensure flawless performance for your USB peripherals - great for quickly transferring data to external USB 3.0 drives.

HD picture quality

Offering support for high-definition 1080p resolutions, this 4-port HDMI KVM switch has the ability to drive HDMI displays with crystal clarity, making it ideal for graphical applications that require 1920 x 1080 video resolutions.

Complete multimedia control

The KVM switch features auxiliary 3.5 mm audio ports that enable you to share independent analog audio, from each of your connected computers, with your desktop speaker set. Independent audio, along with 1080p HDMI video, gives you full multimedia control between different computers, making this KVM perfect for creative professional applications such as video and sound design or editing.

(SV431HDU3A2)

This item comes with a 24 months warranty

Convenient and cost-effective USB 3.0 peripheral sharing

Performance
Maximum Cable Length: 50 ft. (15.24 m)
Maximum Digital Resolutions: 1920 x 1080 @ 60 Hz
MTBF: 142000 hours
On-Screen Display: No
Port Selection Support: Push Button and Hotkeys

Physical Characteristics
Product Height: 4.3 cm [1.7 in]
Product Length: 22 cm [8.7 in]
Product Width: 13 cm [5.1 in]
Weight of Product: 1.1 kg [2.4 lb]

Power
Input Current: 0.6 A
Input Voltage: 100 - 240 AC
Output Current: 1.5 A
Output Voltage: 12V DC
Plug Type: M
Power Consumption (In Watts): 18

Prominence
Description CDW 75 - 1st Line: StarTech.com 4 Port HDMI KVM Switch With Built-in USB 3.0 Hub - 1080p

What's in the Box
Included in Package: 4-port HDMI KVM switch : quick start guide : rubber feet : universal power adapter (NA/EU/UK/AU)

Performance
IP Control: No
Hot-Key Selection: Yes
Audio Specifications: 2-Channel Stereo supported

Packaging Information
Shipping (Package) Weight: 1.6 kg [3.6 lb]
Package Width: 29.7 cm [11.7 in]
Package Length: 24.7 cm [9.7 in]
Package Height: 85 mm [3.3 in]

Indicators
LED Indicators: power LED : port selection/link LEDs

Hardware
Rack-Mountable: Optional
PC Video Type: HDMI
PC Interface: USB 3.0
Number of Monitors Supported: 1
KVM Ports: 4
Daisy-Chain: No

Connector(s)

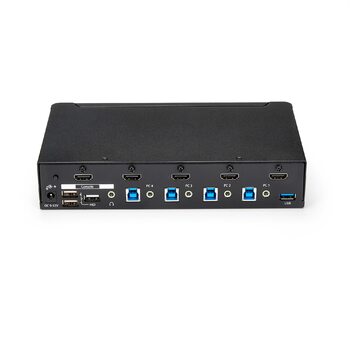

Console Interface(s): 3.5 mm Mini-Jack (3 Position) Output Female : HDMI (19 pin) Output Female : USB Type-A (4 pin) USB 2.0 Female
Host Connectors: 3.5 mm Mini-Jack (3 Position) Input Female : HDMI (19 pin) Input Female : USB Type-B (9 pin) USB 3.0 Female
Other Interface(s): USB Type-A (9 pin) USB 3.0 (5 Gbps) Female

Environmental
Humidity: 0~80% RH Non-Condensing
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -10°C to 60°C (14°F to 140°F)

Hardware
Audio: Yes
Cables Included: No

Model # SV431HDU3A2
Barcode # 065030863735
Brand STAR TECH
Shipping Weight 1.6100kg
Shipping Width 0.250m
Shipping Height 0.090m
Shipping Length 0.300m
Shipping Cubic 0.006236000m3
Type KVM Switch Box
