KVM Console to USB 2.0 Portable Laptop Crash Cart Adapter

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

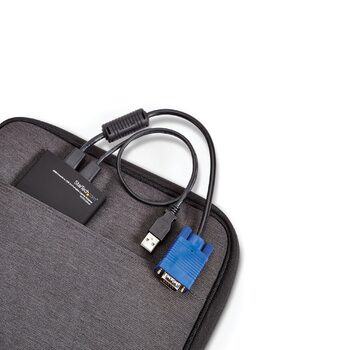

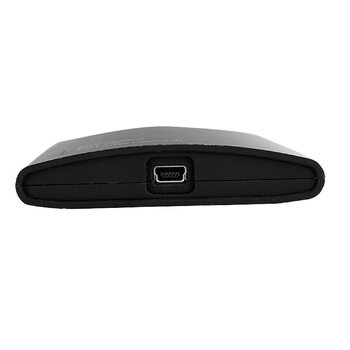

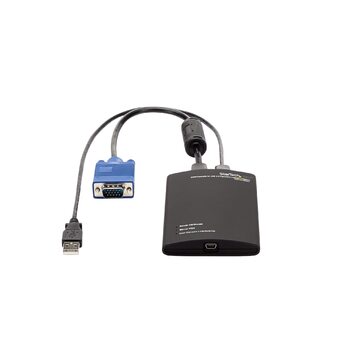

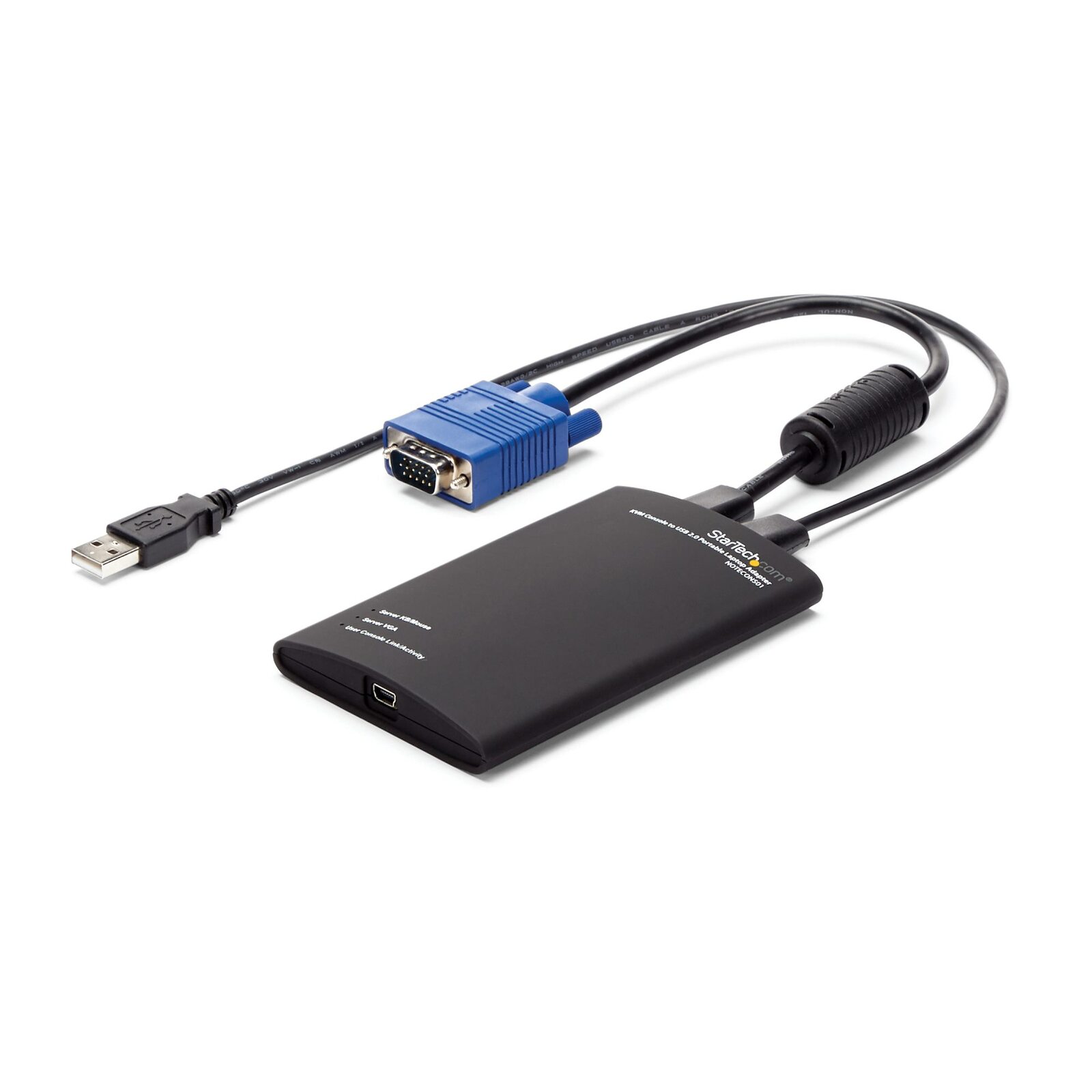

KVM Console to USB 2.0 Portable Laptop Crash Cart Adapter

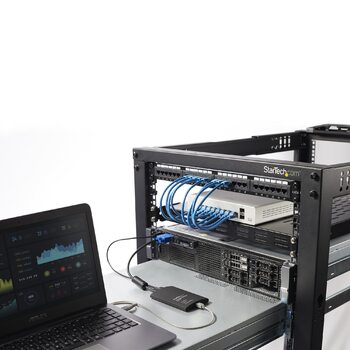

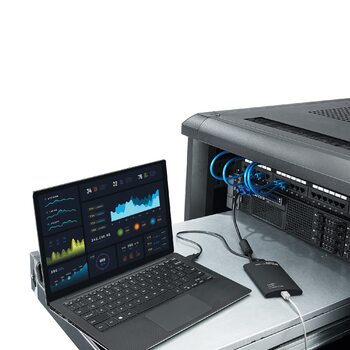

The NOTECONS01 KVM Console to USB 2.0 Portable Laptop Crash Cart Adapter turns your notebook or netbook into a portable server crashcart, eliminating the need to lug around a large, heavy and awkward video screen, keyboard, and mouse. This adapter delivers the VGA stream from any host computer to a laptop and emulates the laptop mouse and keyboard outputs for simple access and control of connected servers, PCs or other "headless" devices.

With portability for the mobile administrator or repair technician in mind, this USB-powered adapter features a small-footprint design that requires no additional accessories to connect to most servers, and requires no server-side software installation. Plus, the pocket-sized adapter draws its power from the server-side USB connections, allowing the laptop/netbook to last longer without consuming battery power.

Ensuring full control of the connected units, the Laptop KVM Server Console Adapter provides immediate access to the POST screen and BIOS, plus the ability to handle full configuration of the attached PC or machine; administrators can connect to a headless server/device without the need of an expensive LCD rackmount console or bulky monitor, keyboard and mouse solution.

(NOTECONS01)

This item comes with a 24 months warranty

Indicators
LED Indicators: Host/Server Keyboard/Mouse (USB,PS/2) Link : Host/Server Video (VGA) Link : User Console/USB Link

Packaging Information
Package Height: 16 cm [6.3 in]
Package Length: 45 mm [1.8 in]
Package Width: 30 cm [11.8 in]
Shipping (Package) Weight: 0.4 kg [0.9 lb]

Performance
Hot-Key Selection: No
IP Control: No
Maximum Analog Resolutions: 1920x1200 @ 60Hz
Maximum Number of Users: 1
MTBF: 284000 Hrs
On-Screen Display: No

Physical Characteristics
Cable Length: 1 x 15in (385mm) USB host cable, 1 x 3in (76mm) VGA host cable, 1 x 6ft (1.8m) USB Console cable
Color: Black
Material: Plastic
Product Depth: 115 mm [4.5 in]
Product Height: 1.5 cm [0.6 in]
Product Width: 74 mm [2.9 in]
Weight of Product: 170 g [6 oz]

Power
Power Source: USB-Powered

Prominence
Description CDW 75 - 1st Line: StarTech.com KVM Console to USB 2.0 Portable Laptop Crash Cart Adapter

Software
OS Compatibility: Windows® XP, Vista, 7, 8, 8.1, 10
Windows Server® 2008 R2, 2012, 2016, 2019
macOS 10.6 to 10.15, 11.0
Linux 2.6.x to 4.11.x (LTS Versions Only; glibc 2.18 or newer required)

Special Notes / Requirements
Note: If you're interfacing with a Linux device, this adapter is only compatible with standard QWERTY keyboards in U.S English configuration

What's in the Box
Included in Package: USB Cable : USB PS/2 KVM Console Adapter : USB Software Key : USB to PS/2 Adapter

Hardware
Rack-Mountable: No
PC Video Type: VGA
PC Interface: USB and PS/2
Number of Monitors Supported: 1
KVM Ports: 1
Daisy-Chain: No
Cables Included: Yes
Audio: No

Environmental
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 80% RH

Connector(s)
Host Connectors: VGA (15 pin, High Density D-Sub) Male : USB Type-A (4 pin) USB 2.0 Male : PS/2 (6 pin, Mini-DIN) Male
Console Interface(s): USB Mini-B (5 pin) Input Female

Model # NOTECONS01
Barcode # 065030835312
Brand STAR TECH
Shipping Weight 0.4000kg
Shipping Width 0.050m
Shipping Height 0.160m
Shipping Length 0.300m
Shipping Cubic 0.002160000m3
Type Adapter
