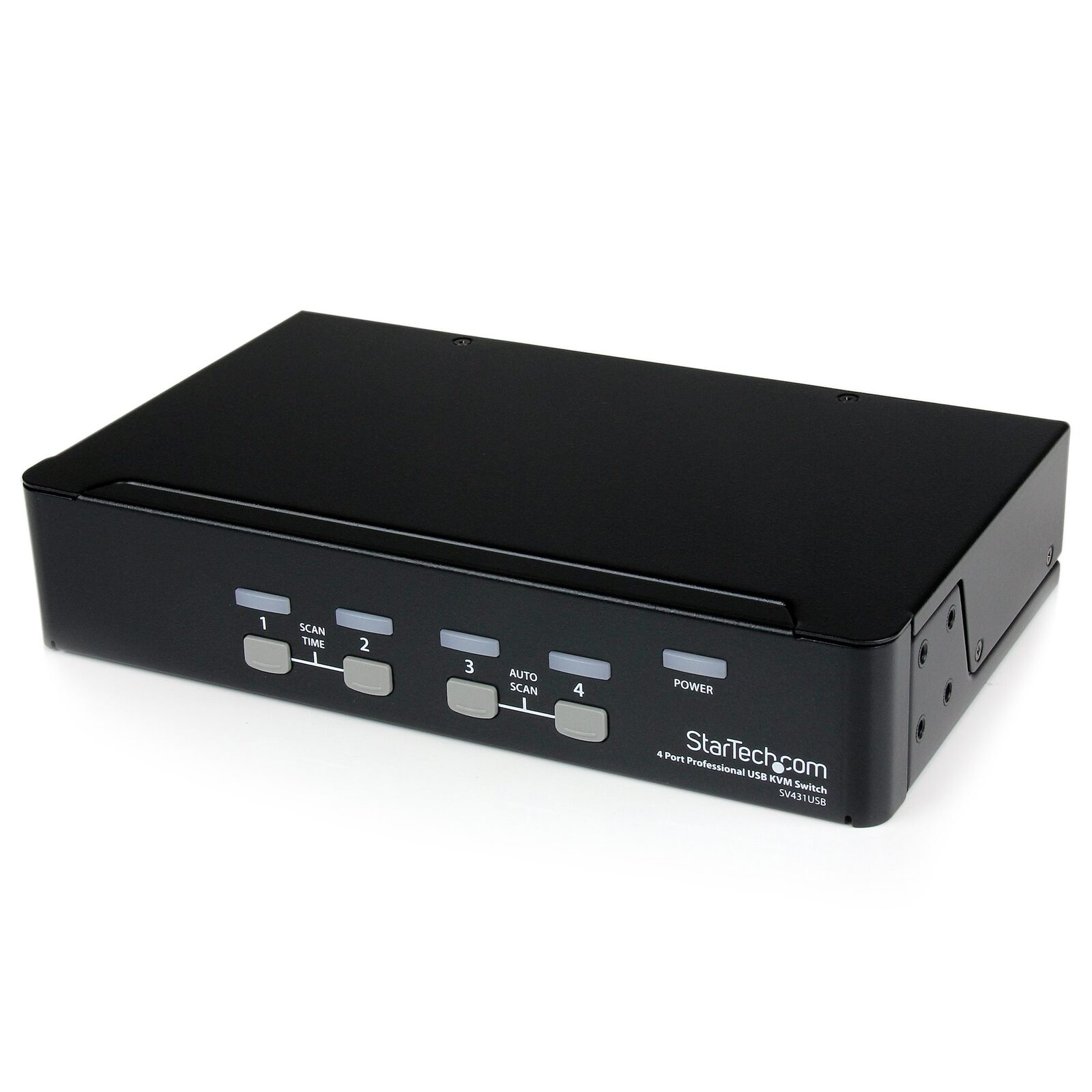

4 Port VGA USB KVM Switch

The SV431USB 4 Port rack mountable VGA USB KVM Switch with Hub offers simple control of up to four computers from a single monitor/display and USB peripheral set (keyboard, mouse).

The USB KVM switch features an integrated 4 port USB hub, allowing you to share connected USB peripherals between the four controlled PC/Mac computers as though the devices were connected directly.

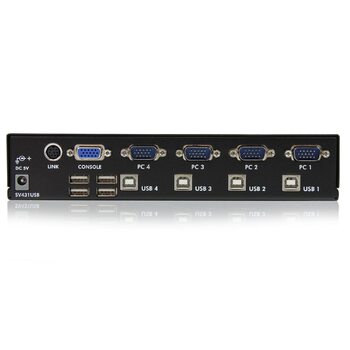

Offering convenient placement and installation options, the KVM switch features a 1U rack-mountable form factor and rear port connection to master and slave computers, allowing you to make the necessary device connections without disrupting your workspace.

A cross-platform solution, the KVM switch supports high resolution applications at up to 1920x1440 and provides a smooth operating experience when controlling mixed (Windows/Mac OS/Linux) environments.

(SV431USB)

This item comes with a 36 months warranty

Offering convenient placement and installation options, the KVM switch features a 1U rack-mountable form factor and rear port connection to master and slave computers, allowing you to make the necessary device connections without disrupting your workspace.

Packaging Information
Package Width: 19.6 cm [7.7 in]
Shipping (Package) Weight: 1.3 kg [2.8 lb]

Performance
Auto Scan: 3, 8, 15 & 30 seconds
DVI Support: No
Hot-Key Selection: No
IP Control: No
Maximum Analog Resolutions: 1920 x 1440
Maximum Cable Length: 5 m [16.4 ft]
Maximum Number of Users: 1
MTBF: 82506 hours
On-Screen Display: No

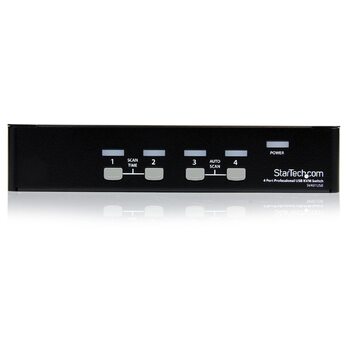

Port Selection Support: Push Button

Physical Characteristics
Color: Black
Material: Steel
Product Height: 4.4 cm [1.7 in]
Product Length: 22 cm [8.7 in]
Product Width: 13 cm [5.1 in]
Weight of Product: 988 g [34.9 oz]

Power
Center Tip Polarity: Positive
Input Current: 0.4A
Input Voltage: 110V-240V AC
Output Current: 2A
Output Voltage: 5 DC
Plug Type: N
Power Source: Not Included (not required for standard applications)

Prominence
Description CDW 75 - 1st Line: StarTech.com 4 Port Professional VGA USB KVM Switch with Hub

Software
OS Compatibility: OS independent; No software or drivers required

Special Notes / Requirements
Note: In order to use the SV431USB with a USB keyboard that has additional USB ports, such as an Apple Macintosh keyboard, or to use the SV431USB with a USB hub, an additional power supply may be required

What's in the Box
Included in Package: 4 Port VGA USB KVM Switch : Instruction Manual : Rubber Feet

Packaging Information
Package Length: 29.5 cm [11.6 in]
Package Height: 72 mm [2.8 in]

Hardware
U Height: 1U
Rack-Mountable: Optional
PC Video Type: VGA
PC Interface: USB
Number of Monitors Supported: 1
KVM Ports: 4
Daisy-Chain: No
Cables Included: No
Audio: No

Connector(s)
Host Connectors: VGA (15 pin, High Density D-Sub) Male : USB B (4 pin) Female
Console Interface(s): VGA (15 pin, High Density D-Sub) Female : USB Type-A (4 pin) USB 2.0 Female

Model # SV431USB
Barcode # 065030787192
Brand STAR TECH
Shipping Weight 1.2800kg
Shipping Width 0.300m
Shipping Height 0.070m
Shipping Length 0.200m
Shipping Cubic 0.004163000m3
Type KVM Switch Box
