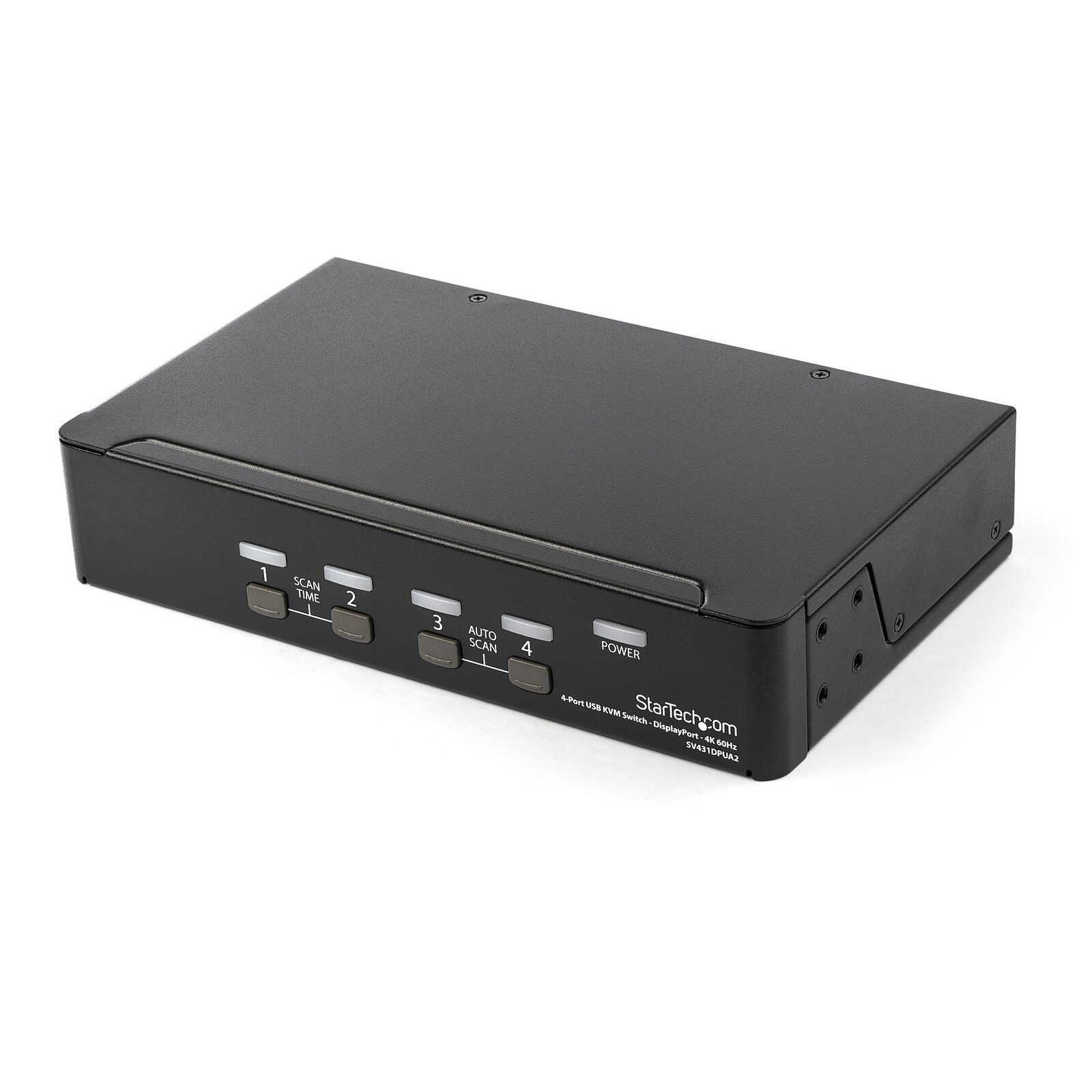

4-Port DisplayPort KVM Switch - 4K 60Hz - DisplayPort 1.2

This 4-port KVM switch combines 4K (60Hz) digital display capabilities with control of up to four connected computers.

4K60 Picture and Full Audio Support

The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and can drive one large DP display with ease, maximizing viewing space. With support for 7.1 HD digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.

Integrated USB Hub

The integrated USB 2.0 hub shares two additional peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected, eliminating the cost of duplicate devices such as printers and scanners.

PC and Mac Compatible

While supporting PCs, this DP KVM switch is also compatible with Mac computers using a Mini DisplayPort adapter, including laptops, notebooks, and tablets.

Simple to Operate

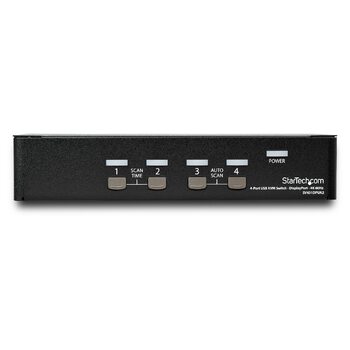

The front-panel pushbuttons make it easy to switch between systems and activate the auto scan. The hotkey functionality makes accessing each system quick while a buzzer sound confirms the switch.

StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice and monitors.

(SV431DPUA2)

This item comes with a 36 months warranty

The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and can drive one large DP display with ease, maximizing viewing space

Hardware
PC Interface: USB
PC Video Type: DisplayPort
Rack-Mountable: Optional
U Height: 1U

Indicators
LED Indicators: Green - Online indicator (One LED per port) : Power : Red - Select indicator (One LED per port)

Packaging Information
Package Height: 87 mm [3.4 in]
Package Length: 40.9 cm [16.1 in]
Package Width: 21.2 cm [8.3 in]
Shipping (Package) Weight: 1.6 kg [3.5 lb]

Performance
Auto Scan: 3, 8, 15 & 30 seconds
Hot-Key Selection: Yes
IP Control: No
Maximum Data Transfer Rate: 480 Mbps (USB 2.0)
Maximum Digital Resolutions: 3840 x 2160 (Ultra HD 4K) @ 60hz
Maximum Number of Users: 1
MTBF: 138327 hours
On-Screen Display: No
Port Selection Support: Push Button and Hotkeys
Wide Screen Supported: Yes

Physical Characteristics
Color: Black
Material: Steel
Product Height: 4.5 cm [1.8 in]
Product Length: 22 cm [8.7 in]
Product Width: 13.1 cm [5.2 in]
Weight of Product: 1 kg [2.3 lb]

Power
Center Tip Polarity: Positive
Input Current: 0.6 A
Input Voltage: 100 - 240 AC
Output Current: 1.5 A
Output Voltage: 12V DC
Plug Type: M

Hardware
Number of Monitors Supported: 1
KVM Ports: 4
Daisy-Chain: No
Cables Included: No
Audio: Yes

Environmental
Storage Temperature: -10°C to 60°C (14°F to 140°F)
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 0% ~ 40%

Connector(s)

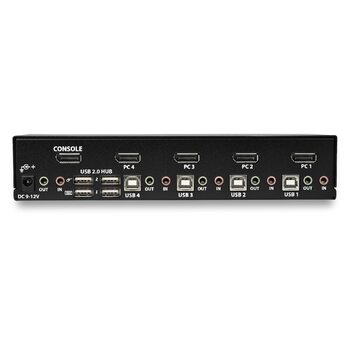

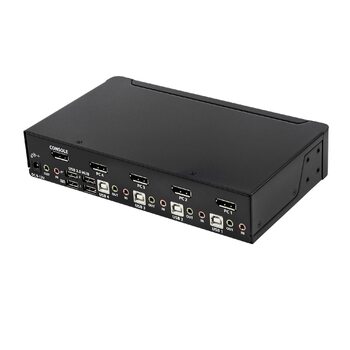

Host Connectors: USB B (4 pin) Female : DisplayPort (20 pin) Female : 3.5 mm Mini-Jack (3 Position) Female
Console Interface(s): USB Type-A (4 pin; HID Port) USB 1.1 Female: USB Type-A (4 pin) USB 2.0 Female : DisplayPort (20 pin) Female : 3.5 mm Mini-Jack (3 Position) Female

Power
Power Consumption (In Watts): 18 W
Power Source: AC Adapter Included

Prominence
Description CDW 75 - 1st Line: StarTech.com 4 Port DisplayPort KVM Switch 4K 60Hz DP 1.2 w/USB 2.0 Hub TAA

Software
OS Compatibility: OS independent: No software or drivers required

What's in the Box
Included in Package: foot pads : KVM switch : quick-start guide : universal power adapter (NA/JP, EU, UK, ANZ)

Model # SV431DPUA2
Barcode # 065030826372
Brand STAR TECH
Shipping Weight 1.6100kg
Shipping Width 0.410m
Shipping Height 0.090m
Shipping Length 0.210m
Shipping Cubic 0.007544000m3
Type KVM Switch Box
