and Audio - HDMI USB KVM

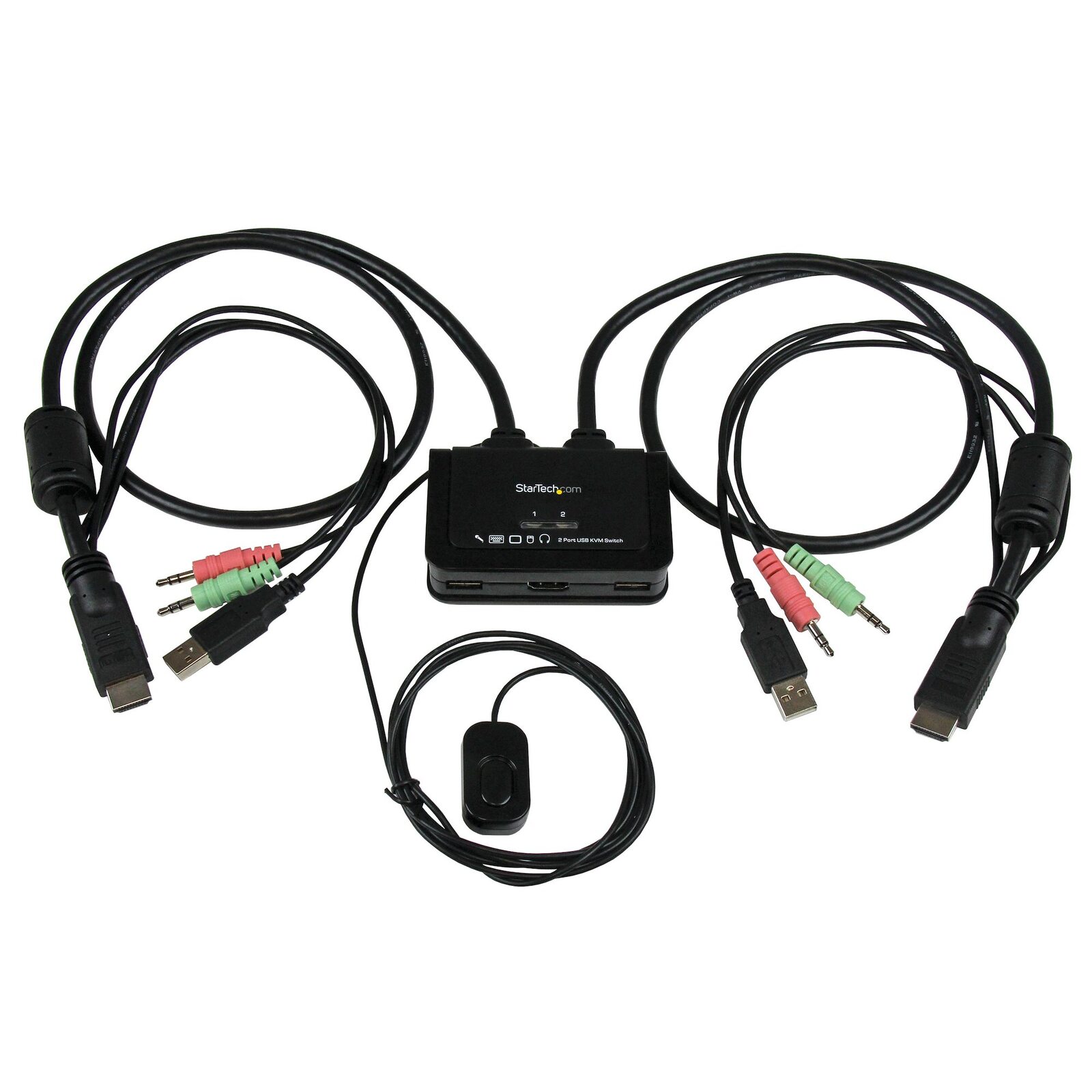

The SV211HDUA 2-Port HDMI® Cable KVM Switch with Audio and Remote Switching Control lets you control two HDMI, USB equipped PCs with a single monitor, keyboard, mouse and audio peripheral set.

To help organize your desk without sacrificing work space, this compact HDMI USB KVM  features integrated cables that can be connected directly to your system, while leaving a minimal footprint. The switch features a remote push-button on a 1.5 meter (5ft) integrated cable that can be placed in an easily accessible location, as well as keyboard hot-keys, and PC or Mac® compatible software for switching between systems. To eliminate the need for a bulky external power adapter and wall outlet, the HDMI KVM switch is USB-powered.

This KVM with HDMI video capability offers support for 1080p HD resolutions (up to 1920x1200) for the ability to drive a large HDMI display for applications that require high graphical output.

(SV211HDUA)

This item comes with a 24 months warranty

The switch features a remote push-button on a 1.5 meter (5ft) integrated cable that can be placed in an easily accessible location, as well as keyboard hot-keys, and PC or Mac® compatible software for switching between systems

Hardware
PC Interface: USB
PC Video Type: HDMI
Rack-Mountable: No

Indicators
LED Indicators: PC Selection indictor

Packaging Information
Package Height: 62 mm [2.4 in]
Package Length: 25 cm [9.8 in]
Package Width: 16.1 cm [6.3 in]
Shipping (Package) Weight: 464 g [16.4 oz]

Performance
Audio Specifications: 3.5mm and HDMI audio supported
Hot-Key Selection: Yes
IP Control: No
On-Screen Display: No
Port Selection Support: Push Button, Hotkeys, and Software

Physical Characteristics
Cable Length: 850 mm [33.5 in]
Color: Black
Material: Plastic
Product Height: 2.3 cm [0.9 in]
Product Length: 88 mm [3.5 in]
Product Width: 66 mm [2.6 in]
Weight of Product: 350 g [12.4 oz]

Power
Power Source: USB-Powered

Prominence
Description CDW 75 - 1st Line: StarTech.com 2 Port USB HDMI Cable KVM Switch with Audio and Remote Switch

Software
OS Compatibility: Windows® 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2016, 2019
Mac OS 10.6 to 10.9

Special Notes / Requirements
Note: OS Compatibility refers to KVM software only - the KVM itself can be used without software on any platform

What's in the Box
Included in Package: Instruction Manual : KVM Switch : Software CD

Hardware
Number of Monitors Supported: 1
KVM Ports: 2
Industry Standards: HDCP
Daisy-Chain: No
Cables Included: Yes
Audio: Yes

Environmental
Storage Temperature: -20°C to 60°C (4°F to 140°F)
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 0~90% RH Non-Condensing

Connector(s)
Host Connectors: USB Type-A (4 pin) USB 2.0 Male : HDMI (19 pin) Male : 3.5 mm Mini-Jack (3 Position) Male
Console Interface(s): USB Type-A (4 pin) USB 2.0 Female : HDMI (19 pin) Female : 3.5 mm Mini-Jack (3 Position) Female

Model # SV211HDUA
Barcode # 065030851060
Brand STAR TECH
Shipping Weight 0.4600kg
Shipping Width 0.250m
Shipping Height 0.060m
Shipping Length 0.160m
Shipping Cubic 0.002495000m3
Type KVM Switch Box
