2 Pt DisplayPort KVM

This 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of two connected computers.

4K 60Hz Picture and Full Audio Support

The DisplayPort KVM switch supports resolutions up to 4K at 60Hz. It drives one large monitor at the full 4K resolution or, using an MST adapter, can drive various DisplayPort multi-display setups totaling 4Kif you need to maximize viewing space. With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.

Integrated USB Hub

The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.

Windows, Mac & Linux Compatible

While supporting Windows, this DP KVM switch is also compatible with Mac and Linux operating systems.

Easy to Operate

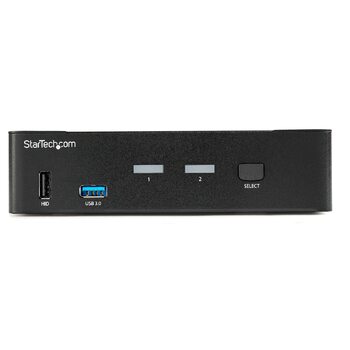

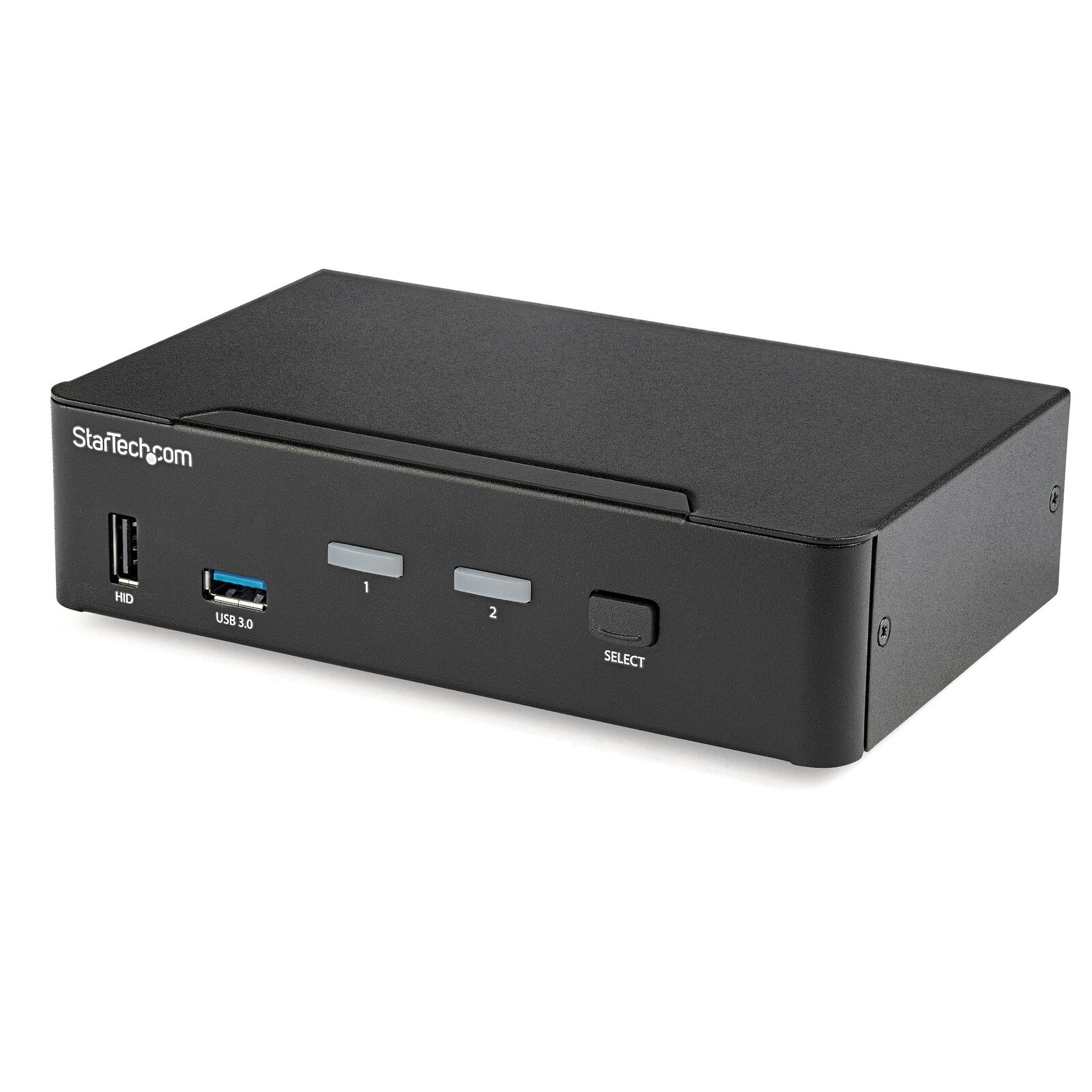

The front-panel push buttons make it easy to switch between systems and activate the auto scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.

StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors. 

(SV231DPU34K)

This item comes with a 24 months warranty

The DisplayPort KVM switch supports resolutions up to 4K at 60Hz

Hardware
Number of Monitors Supported: 1
PC Interface: USB 3.0
PC Video Type: DisplayPort

Indicators
LED Indicators: Green : Red

Packaging Information
Package Height: 91 mm [3.6 in]
Package Length: 23.8 cm [9.4 in]
Package Width: 18.9 cm [7.4 in]
Shipping (Package) Weight: 1 kg [2.3 lb]

Performance
Audio Specifications: 2-Channel Stereo
DVI Support: No
Hot-Key Selection: Yes
IP Control: No
Maximum Digital Resolutions: 3840x2160 @ 60Hz
Maximum Number of Users: 1
MTBF: 60000 hours
On-Screen Display: No
Port Selection Support: Push Button and Hotkeys
Supported Resolutions: 1024x768
1280x720 (High-definition 720p)
1920x1080 (High-definition 1080p)
1920x1200
2560x1440
2560x1600
3840x2160 (Ultra HD 4K)

Wide Screen Supported: Yes

Physical Characteristics
Color: Black
Material: Steel
Product Height: 4 cm [1.6 in]
Product Length: 10 cm [3.9 in]
Product Width: 16 cm [6.3 in]
Weight of Product: 1.1 kg [2.3 lb]

Power
Center Tip Polarity: Positive
Input Current: 0.6A
Input Voltage: 100 - 240 AC
Output Current: 1.5A
Output Voltage: 12V DC
Plug Type: M
Power Consumption (In Watts): 18 W

Hardware
KVM Ports: 2
Industry Standards: USB 3.0
DisplayPort 1.2
HDCP 2.2
Daisy-Chain: No
Cables Included: No
Audio: Yes

Environmental
Storage Temperature: -10℃ ~ 60℃
Operating Temperature: 0℃ ~ 40℃
Humidity: 0% - 80%

Connector(s)

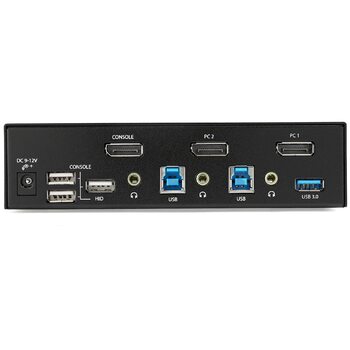

Host Connectors: USB Type-B (9 pin) USB 3.0 Female : DisplayPort (20 pin) Output Female : 3.5 mm Mini-Jack (3 Position) Input Female
Console Interface(s): USB Type-A (9 pin) USB 3.0 (5 Gbps) Female : USB Type-A (4 pin; HID Port) USB 1.1 Female : DisplayPort (20 pin) Output Female : 3.5 mm Mini-Jack (3 Position) Output Female

Power
Power Source: AC Adapter Included

Prominence
Description CDW 75 - 1st Line: StarTech.com 2 Port DisplayPort KVM Switch 4K 60Hz DP 1.2 w/USB 3.0 Hub TAA

What's in the Box
Included in Package: KVM Switch : Quick-Start Guide : Rubber Foot Pads : Universal Power Adapter (NA/JP, EU, UK, ANZ)

Model # SV231DPU34K
Barcode # 065030880121
Brand STAR TECH
Shipping Weight 1.0400kg
Shipping Width 0.240m
Shipping Height 0.090m
Shipping Length 0.190m
Shipping Cubic 0.004093000m3
Type KVM Switch Box
